FiTech LS 70012 w/50015 Inline Fuel Pump Regulator & Coil (78612)

Description

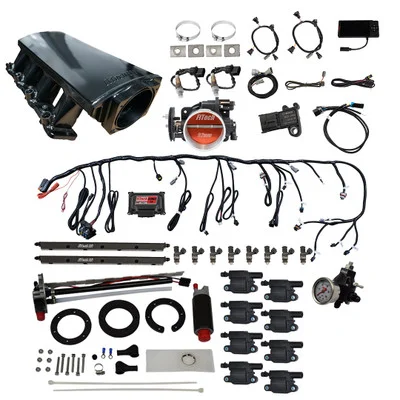

The FiTech LS 70012 w/50015 Inline Fuel Pump Regulator & Coil (78612) is a complete solution for converting your LS engine to modern electronic fuel injection. This kit offers improved performance, fuel efficiency, and drivability. Designed for engines producing up to 500 horsepower, it includes everything needed for a seamless upgrade, such as a multi-port throttle body, injectors, ECU, wiring harness, and fuel system components. The self-tuning feature allows for easy setup, while the user-tunable options provide flexibility for advanced adjustments. Integrated transmission control simplifies the installation process and provides enhanced control over GM 4L60, 4L65, 4L70, and 4L80 transmissions. An included in-tank fuel pump and quality built fuel rails assure consistent fuel delivery.

KEY FEATURES AND BENEFITS:

• Complete EFI Solution: Everything needed for a seamless upgrade from carburetor to EFI.
• Self-Tuning ECU: Automatically adjusts fuel delivery for optimal performance.
• User-Tunable Options: Flexibility for advanced adjustments as needed.
• Integrated Transmission Control: Simplifies installation and enhances control over GM transmissions.
• Reliable Fuel Delivery: In-tank fuel pump and quality fuel rails included.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Maximum Horsepower: 500 HP
• Timing Control: Yes
• ECU Included: Yes
• Self-Tuning: Yes
• Transmission Controller: Yes
• Metering Style: Speed density
• Intake Material: Aluminum
• Injector Size: 36 lbs/hr
• Throttle Body: 92mm GM LS2 4-bolt
• Fuel Pump Style: In-tank
• Compatible Fuel Types: Gasoline, Alcohol, Methanol, Flex

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
• Intake Installation: Install the FiTech intake manifold onto the engine, ensuring proper gasket placement.
• Throttle Body and Injector Installation: Mount the throttle body and connect the included fuel injectors to the fuel rails.
• Wiring Harness Connection: Connect the wiring harness to the engine sensors, injectors, and ECU.
• Fuel System Installation: Install the in-tank fuel pump and connect the fuel lines to the fuel rails and pressure regulator.
• ECU Setup: Mount the ECU and connect the touchscreen display.
• Sensor Connections: Attach the MAP, IAT, TPS, and oxygen sensors.
• Transmission Connections: If applicable, connect the transmission wiring harness to the transmission.
• Initial Power-Up: Reconnect the battery and power on the ECU.
• Initial Setup: Follow the touchscreen prompts to input basic engine parameters.
• Self Tuning: Allow the vehicle to run, so the ECU can begin its self-tuning process.
• Final Adjustments: User can further tune the system with the handheld device.

BENEFITS OF USING THE FITECH LS 70012 W/50015 INLINE FUEL PUMP REGULATOR & COIL (78612):

• Improved engine performance and throttle response.
• Enhanced fuel efficiency.
• Simplified installation and tuning process.
• Precise control over engine parameters.
• Reliable fuel delivery.
• Transmission control built into the ECU.
• Data logging for performance analysis.

FEATURES:

• Durable Construction: Black anodized aluminum for corrosion resistance.
• High-Flow Throttle Body: 92mm cable-operated design.
• Accurate Readings: Bosch wideband oxygen sensor control.
• Coil Compatibility: Works with both car and truck coils.
• Robust Fuel System: AN fittings and fuel crossover included.
• Custom Camshaft Support: Designed for applications with custom camshafts.
• Signal Compatibility: 24X and 58X crank and cam compatibility.
• Programmable Controller: Touchscreen handheld controller with data logging features.
• Included Components: Coil pack set and in-tank fuel module included.
