FiTech LS 500HP EFI w/70001 Kit Inline Fuel Pump & Coil Pack (78101)

Description

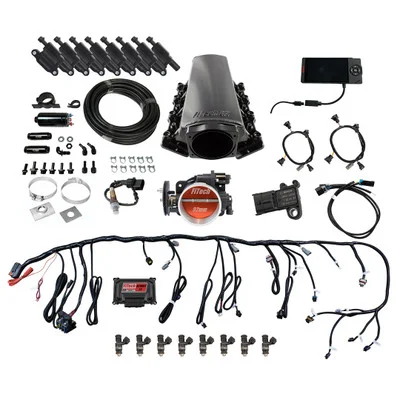

The FiTech LS 500HP EFI w/70001 Kit Inline Fuel Pump & Coil Pack (78101) is a complete solution for converting your LS engine to electronic fuel injection. Designed for engines producing up to 500 horsepower, this multi-port system improves performance and efficiency over traditional carbureted setups. The kit includes all essential components, such as a 92mm throttle body, 36 lbs./hr injectors, ECU, wiring harness, and sensors. It features a self-tuning ECU for easier setup and operation, and a short intake manifold for enhanced airflow.

KEY FEATURES AND BENEFITS:

• Performance Upgrade: Multi-port fuel injection ensures precise fuel delivery.
• Self-Tuning ECU: Simplifies installation and tuning by adapting to engine needs.
• Complete Kit: Includes everything required for conversion, minimizing extra purchases.
• Optimized Airflow: 92mm throttle body and high-volume fuel rails maximize power.
• Fuel Compatibility: Designed for use with gasoline, alcohol, and methanol.

SPECIFICATIONS:

• Maximum horsepower: 500 HP
• Injection style: Multi-port
• Throttle body: 92mm, 1250 CFM, GM LS2 4-bolt
• Injectors: 36 lbs./hr.
• Fuel pump: External inline
• ECU: Included, self-tuning
• Intake manifold: Aluminum, black anodized
• Fuel compatibility: Gasoline, alcohol, methanol, flex
• Sensors: MAP, IAT, TPS, oxygen
• Transmission control: No

HOW TO USE:

• Preparation: Remove the existing carbureted system and clean the engine bay.
• Intake Manifold Installation: Mount the FiTech intake manifold onto the engine.
• Throttle Body and Injector Installation: Attach the throttle body and install the injectors into the fuel rails.
• Wiring Harness Connection: Connect the plug-and-play wiring harness to the engine sensors and ECU.
• Sensor Installation: Mount the MAP, IAT, TPS, and oxygen sensors.
• Fuel Pump Installation: Install the external fuel pump and connect the fuel lines.
• ECU Setup: Connect the touchscreen controller and follow the on-screen prompts to configure the ECU.
• Initial Startup: Start the engine and allow the ECU to self-tune.
• Fine-Tuning: Make adjustments as needed using the handheld controller.

BENEFITS OF USING THE FITECH LS 500HP EFI W/70001 KIT INLINE FUEL PUMP & COIL PACK (78101):

• Improved engine performance and efficiency.
• Quick setup due to self-tuning feature, adapting easily to different driving conditions.
• Precise fuel delivery enhances throttle response and power.
• Complete kit eliminates the hassle of sourcing individual components.
• Versatile fuel compatibility for various applications.

FEATURES:

• Durable Construction: Black anodized aluminum intake manifold.
• High-Flow Throttle Body: 92mm cable-operated design for optimal airflow.
• Wideband Oxygen Sensor: Bosch controlled for accurate readings.
• Sensor Bung: Stainless steel oxygen sensor bung included.
• Coil Compatibility: Works with both car and truck coils.
• Fuel System Design: AN fittings and fuel crossover for reliable connections.
• Custom Camshaft Compatibility: Designed for use with custom camshafts.
• Signal Compatibility: 24X and 58X crank and cam compatible.
• Controller Features: Programmable touchscreen handheld controller with data logging.
• Metering System: Speed density (MAP-N) for accurate fuel measurement.
