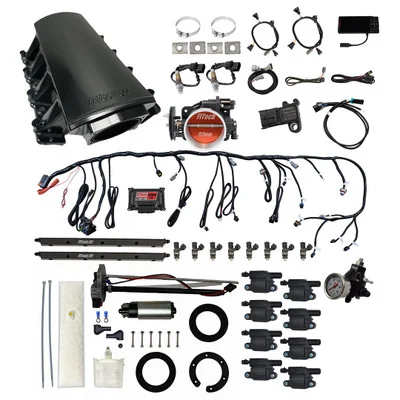

FiTech LS 500HP EFI LS7 Intake Kit w/ Trans Control & LS3 Coil (78416)

Description

The FiTech LS 500HP EFI LS7 Intake Kit w/ Trans Control & LS3 Coil (78416) provides a comprehensive electronic fuel injection solution for LS engines. This kit simplifies engine upgrades by including all necessary components for a complete induction and fuel delivery system. Designed for 500HP applications, it features an in-tank fuel pump, fuel pressure regulator, and transmission control. The system is compatible with boost and nitrous oxide power adders and supports multiple fuel types, including gasoline, alcohol, and methanol.

KEY FEATURES AND BENEFITS:

• Complete LS EFI System: Includes intake manifold, fuel pump, injectors, ECU, and wiring harness.
• 500 HP Support: Designed to handle high-performance LS engine builds.
• Transmission Control: Integrated transmission controller simplifies installation.
• Multi-Fuel Compatibility: Supports gasoline, alcohol, methanol, and flex fuel.
• Boost/Nitrous Ready: Compatible with forced induction and nitrous oxide systems.
• Speed Density Metering: Utilizes MAP sensor for accurate fuel delivery.
• In-Tank Fuel Pump: Simplifies fuel system installation.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder Compatibility: Yes (Boost/Nitrous)
• ECU: Included
• Fuel Pump: Included (In-tank)
• Transmission Controller: Included
• Metering Style: Speed density (Map-N)
• Intake Manifold: Included (Aluminum, Black Anodized)
• Throttle Body: 92mm, 1250 cfm
• Injectors: 36 lbs/hr
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Install the Intake Manifold: Mount the provided intake manifold to the LS engine.
• Mount the Throttle Body: Attach the 92mm throttle body to the intake manifold.
• Install Fuel Rails and Injectors: Secure the fuel rails and install the 36 lbs/hr injectors.
• Mount the Fuel Pump: Install the in-tank fuel pump module within the fuel tank.
• Connect Wiring Harness: Connect the provided wiring harness to the ECU and engine sensors.
• Install Sensors: Mount the MAP, IAT, TPS, and oxygen sensors.
• Connect Fuel Regulator: Install the fuel pressure regulator and connect fuel lines.
• Connect Coil Packs: Install the provided coil packs.
• Load Calibration: Use the calibration module to load the appropriate engine calibration.
• Start and Tune: Start the engine and fine-tune the EFI system as needed.

BENEFITS OF USING THE FITECH LS 500HP EFI LS7 INTAKE KIT W/ TRANS CONTROL & LS3 COIL (78416):

• Simplified LS Engine Swaps: Provides a complete EFI solution, reducing installation complexity.
• Improved Performance: Optimizes fuel delivery and timing for increased horsepower and torque.
• Enhanced Fuel Efficiency: Precise fuel control leads to better fuel economy.
• Reliable Operation: High-quality components ensure consistent performance.
• Versatile Fuel Compatibility: Ability to run multiple fuel types provides flexibility.

FEATURES:

• Black anodized aluminum intake manifold.
• 92mm throttle body with 1250 cfm airflow.
• 36 lbs/hr fuel injectors.
• Integrated transmission control.
• Adjustable fuel pressure regulator.
• Complete wiring harness.
• MAP, IAT, TPS, and oxygen sensors included.
• LS3 style coil 8-pack master kit.
• Calibration module for tuning.
