FiTech LS 500 HP EFI LS7 Intake 340LPH In-tank Master Kit (79715)

Description

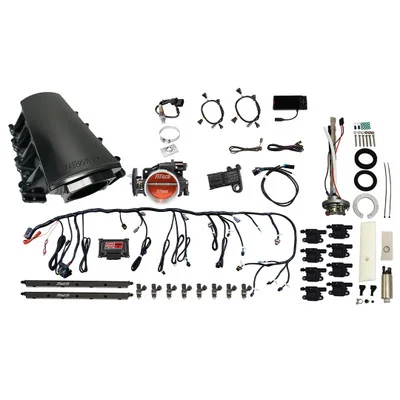

The FiTech LS 500 HP EFI LS7 Intake 340LPH In-tank Master Kit (79715) offers a comprehensive solution for upgrading LS engines to modern electronic fuel injection. This kit provides the necessary components for a complete conversion, including an intake manifold, throttle body, ECU, injectors, and fuel delivery system. Designed for engines producing up to 500 horsepower, the system features self-tuning capabilities and user-adjustable settings for optimal performance.

KEY FEATURES AND BENEFITS:

• Complete multi-port fuel injection system for LS engines.
• Self-tuning technology to maintain optimal air/fuel ratios.
• Includes a 340 LPH in-tank regulated fuel pump.
• 92mm throttle body for improved airflow.
• 36 lb/hr injectors for precise fuel delivery.
• Includes 8 LS3 style ignition coils with LED indicators.
• Supports boosted applications with a 3-Bar MAP sensor.
• User-adjustable settings for fine-tuning performance.
• 4.5-inch color touchscreen for easy control and monitoring.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Maximum Horsepower: 500 HP
• Throttle Body Size: 92mm
• Injector Size: 36 lb/hr
• Fuel Pump: 340 LPH in-tank regulated
• MAP Sensor: 3-Bar
• Display: 4.5 inch touchscreen
• Ignition Coils: 8 LS3 style with LED
• Intake Manifold Material: Aluminum

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing intake and fuel system.
• Installation: Install the FiTech intake manifold and throttle body.
• Fuel System: Mount the in-tank fuel pump module and connect the fuel lines.
• Wiring: Connect the wiring harness to the engine sensors and ECU.
• Sensor Installation: Install the MAP, IAT, TPS, and oxygen sensors.
• Injector and Coil Installation: Install the fuel injectors and LS3 ignition coils.
• ECU Setup: Mount the ECU and connect the touchscreen display.
• Initial Setup: Follow the on-screen instructions to initialize the system and set basic parameters.
• Self-Tuning: Start the engine and allow the system to self-tune.
• Fine-Tuning (Optional): Use the touchscreen display to adjust settings as needed.

BENEFITS OF USING THE FITECH LS 500 HP EFI LS7 INTAKE 340LPH IN-TANK MASTER KIT (79715):

• Improved engine performance and throttle response.
• Increased fuel efficiency.
• Simplified conversion to electronic fuel injection.
• Reduced engine maintenance and troubleshooting.
• Enhanced control and monitoring through the touchscreen display.
• Reliable fuel delivery under varying engine loads.
• Capability for boosted applications.

FEATURES:

• Fabricated 3mm thick aluminum sheet metal intake manifold, TIG welded.
• Cast, cable activated billet aluminum 92mm throttle body.
• Handheld controller with color touch screen and cable, with windshield mount.
• LS ECU with sequential fuel and spark control.
• Connects to 24x and 58x cam sensors.
• Knock sensor control connects to factory sensors.
• Tach output driver works with most tachometers.
• Two programmable electric fan outputs.
• Custom wiring harness for a direct plug-in installation.
• High volume billet fuel rails.
