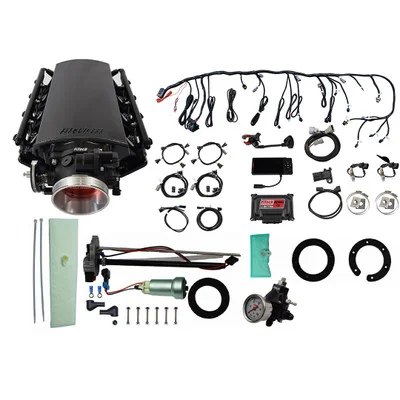

FiTech LS 1000HP EFI w/Short Cath Intake, TC, Pump & Regulator (76131)

Description

The FiTech LS 1000HP EFI w/Short Cath Intake, TC, Pump & Regulator (76131) is designed for high-performance LS engines, providing a comprehensive multi-port fuel injection solution capable of supporting up to 1,000 horsepower. This kit includes an in-tank 440 LPH fuel pump module and regulator master kit, ensuring consistent and reliable fuel delivery. The system features an LS1 short intake manifold with integrated transmission control, simplifying installation and enhancing performance.

KEY FEATURES AND BENEFITS:

• Self-Tuning Capabilities: Efficient initial setup and user tunability for fine-tuning performance.
• High-Flow Support: Includes 80 lbs/hr injectors and a high-flow fuel pump for high-horsepower applications, including forced induction or nitrous oxide.
• Integrated Transmission Control: Eliminates the need for a separate controller.
• Real-Time Data Display: 4.5-inch display provides real-time data and system adjustments.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Fuel Injection System Type: Multi-port Throttle Body
• Maximum Horsepower (Gas): 1,000
• Timing Control: Yes
• ECM Included: Yes
• Self-Tuning: Yes
• User Tunable: Yes
• Fuel System: In-tank 440 LPH pump, return
• Injectors: 80 lbs/hr
• Transmission Controller: Yes
• Metering Style: Speed density
• Intake Material: Aluminum
• Throttle Body Mounting Flange: GM LS2 4-bolt
• Compatibility: GM LS based engines; LS1 short intake manifold configuration

HOW TO USE:

• Installation: Install the in-tank fuel pump module and regulator kit within the fuel tank. Mount the LS1 short intake manifold and throttle body onto the engine.
• Wiring: Connect the provided wiring harness to the ECM and all sensors (O2, MAP, IAT, TPS). Connect the transmission controller wiring as applicable.
• Sensor Placement: Install the oxygen sensor in the exhaust stream. Mount the MAP, IAT, and TPS sensors as per the installation guide.
• Fuel Lines: Connect the fuel lines from the pump to the fuel rails and regulator.
• ECM Configuration: Power up the system and use the 4.5-inch display to input initial engine parameters.
• Self-Tuning: Allow the system to self-learn during initial driving.
• Fine-Tuning: Use the display or optional software to make adjustments as needed.

BENEFITS OF USING THE FITECH LS 1000HP EFI W/SHORT CATH INTAKE, TC, PUMP & REGULATOR (76131):

• Improved Fuel Efficiency: Enhanced performance compared to carburetor systems.
• Precise Fuel Delivery: Ensures optimal power output.
• Simplified Installation: Complete kit with all necessary components.
• Reliable Fuel Delivery: High-flow fuel pump ensures consistent performance.
• Modern Engine Control: Adjustable and efficient operation.

FEATURES:

• High-Flow Fuel Pump: 440 LPH in-tank fuel pump for reliable fuel delivery.
• High Flow Injectors: 80 lbs/hr for high-performance applications.
• Speed Density Calculations: Accurate air-fuel ratio management.
• User Interface Display: 4.5-inch for real-time adjustments and monitoring.
• Full Wiring Harness: Complete wiring and sensor kit included.
• LS1 Short Intake Manifold: Designed for efficient airflow and fitment.
• GM LS2 4-Bolt Flange: Compatible throttle body mounting.
