Description

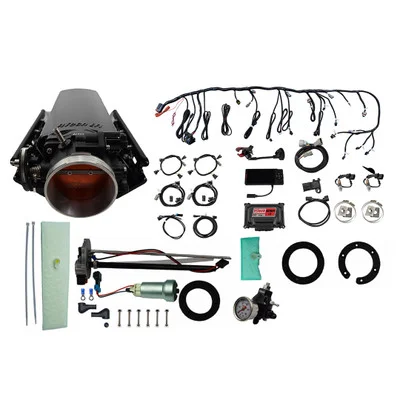

The FiTech LS 1000HP EFI w/Long Cath Intake, TC, Pump & Regulator (76133) delivers a complete electronic fuel injection solution for LS engines. This kit is designed to support high-horsepower applications, including those with forced induction or nitrous oxide. It includes all necessary components for a comprehensive upgrade, from the intake manifold to the fuel pump and sensors.
KEY FEATURES AND BENEFITS:
- Reliable Fuel Delivery: Engineered for high-performance LS engines, supporting up to 1,000 horsepower.
- Multi-Port Fuel Injection: Ensures precise fuel control for optimal engine performance.
- Self-Tuning Capability: Simplifies the setup process; user-tunable settings allow for fine-tuning.
- Included Transmission Controller: Adds versatility for better shifting performance.
- Consistent Fuel Flow: In-tank 440 LPH fuel pump maintains reliable fuel delivery.
SPECIFICATIONS:
- Part Number: 76133
- Fuel Injection Style: Multi-port
- Maximum Horsepower (Gas): 1,000
- Fuel Pump Flow Rating: 440 LPH
- Injector Size: 80 lbs/hr
- Intake Material: Aluminum
- Throttle Body Mounting Flange: GM LS2 4-bolt
- Transmission Controller: Yes
- Metering Style: Speed density
- User Interface: 4.5 in. display
- Compatibility: LS Series Engines
HOW TO USE:
- Preparation: Disconnect the vehicle’s battery. Remove the existing intake manifold and fuel system components.
- Installation: Install the FiTech long runner intake manifold and throttle body. Mount the in-tank fuel pump module within the fuel tank.
- Wiring: Connect the wiring harness to the engine sensors, injectors, and ECM. Connect the transmission controller wiring as needed.
- Sensor Installation: Install the provided oxygen, MAP, IAT, and TPS sensors.
- Fuel System Connection: Connect the fuel lines to the fuel pump, regulator, and fuel rails.
- ECM Setup: Mount the ECM and connect the 4.5-inch display.
- Initial Setup: Power on the system and follow the on-screen prompts for initial setup and calibration.
- Fine Tuning: Use the display to monitor and adjust fuel and timing settings as needed.
BENEFITS OF USING THE FITECH LS 1000HP EFI W/LONG CATH INTAKE, TC, PUMP & REGULATOR (76133):
- Improved Fuel Efficiency: Enhanced performance compared to traditional systems.
- Precise Fuel Delivery: Optimizes engine operation for maximum power output.
- Simplified Installation: Self-tuning capabilities streamline the setup process.
- Enhanced Control: User-tunable settings provide flexibility for performance adjustments.
- Reliable High-Horsepower Support: Designed to handle demanding applications.
- Transmission Control Included: Facilitates better shifting for improved drivability.
FEATURES:
- Long Runner Intake Manifold: Increases airflow for improved performance.
- High-Flow Injectors: 80 lbs/hr to support adequate fuel delivery.
- In-Tank Fuel Pump: 440 LPH pump maintains consistent fuel pressure.
- Integrated Transmission Control: Automates shifting for better performance.
- Speed Density Metering: Ensures accurate fuel calculations.
- Comprehensive Sensor Suite: Provides real-time engine monitoring.
- User-Friendly Display: 4.5-inch interface for easy interaction and adjustments.
- Durable Finish: Black anodized components for a clean and professional look.
