FiTech LS 1000HP EFI Short Dual Pump Master Kit w/ TC/Coil/LED (79931)

Description

The FiTech LS 1000HP EFI Short Dual Pump Master Kit w/ TC/Coil/LED (79931) provides a comprehensive electronic fuel injection solution for high-performance LS engines. This kit is engineered to support up to 1,000 horsepower, delivering precise fuel and spark control for optimal performance. Designed for LS engines with cathedral port heads (LS1/LS2/LS6), this system includes all necessary components for a complete EFI conversion.

KEY FEATURES AND BENEFITS:

• Supports up to 1,000 horsepower, ideal for high-performance applications.
• Multi-port fuel injection for precise fuel delivery and improved engine efficiency.
• Self-tuning ECU that adapts to engine conditions, optimizing air/fuel ratios.
• Integrated transmission control for 4L60/65/80/85 GM transmissions, allowing for shift point and firmness adjustments.

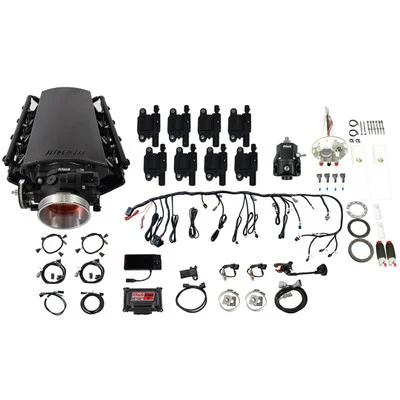

• Complete kit includes intake manifold, 102mm throttle body, fuel system, ignition components, and wiring harness.
• User-friendly 4.5-inch color touchscreen handheld controller for easy system monitoring and adjustments.

SPECIFICATIONS:

• Maximum Horsepower: 1,000 HP (Gasoline)
• Fuel Injection Style: Multi-port
• Throttle Body: 102mm, GM LS2 4-bolt flange
• Injectors: 80 lbs/hr
• Intake Manifold: Short Cathedral Port, Aluminum
• ECU: Self-tuning, user-tunable
• Transmission Control: 4L60/65/80/85 GM
• MAP Sensor: 3 bar
• Fuel Pump: In-tank dual pump module
• Ignition Coils: LS3 style

HOW TO USE:

• Installation: Install the intake manifold, throttle body, fuel rails, and injectors onto the LS engine.
• Fuel System Setup: Install the in-tank dual pump module and connect the fuel lines to the fuel rails and regulator.
• Wiring: Connect the wiring harness to the ECU, sensors (MAP, IAT, TPS, O2), injectors, and ignition coils.
• ECU Connection: Connect the 4.5-inch handheld controller to the ECU.
• Initial Setup: Power on the system and use the handheld controller to input basic engine parameters.
• Self-Tuning: Start the engine and allow the ECU to self-learn and optimize air/fuel ratios.
• Transmission Setup (if applicable): Use the handheld controller to adjust shift points and firmness for the connected transmission.
• Fine-Tuning: Monitor engine performance and make necessary adjustments using the handheld controller.

BENEFITS OF USING THE FITECH LS 1000HP EFI SHORT DUAL PUMP MASTER KIT W/ TC/COIL/LED (79931):

• Improved engine performance and horsepower output.
• Precise fuel and spark control for optimal efficiency.
• Simplified installation with a complete kit and plug-in wiring harness.
• Easy system monitoring and adjustments through the handheld controller.
• Self-tuning capabilities eliminate the need for complex manual tuning.
• Transmission control allows for better driving experience.

FEATURES:

• Fabricated 3mm thick aluminum sheet metal intake manifold.
• Cast, cable activated billet aluminum 102mm throttle body.
• Handheld controller with color touch screen and cable with windshield mount.
• 80 lb./hr. injectors with high volume billet fuel rails.
• Sequential fuel and spark control with individual cylinder trim.
• Connects to 24x and 58x cam sensors.
• Knock sensor control connects to factory sensors.
• 3-Bar MAP sensor for boosted applications up to 30 psi.
• Tach output driver works with most tachometers.
• Two programmable electric fan outputs.
• Supplied with WBO2 sensors.
• LS3 style ignition coils with LED indicators.
