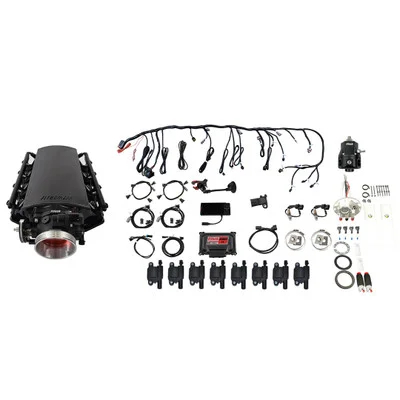

FiTech LS 1000 HP EFI Short Intake Dual Pump Master Kit (78930)

Description

The FiTech LS 1000 HP EFI Short Intake Dual Pump Master Kit (78930) provides a complete electronic fuel injection solution for high-performance LS engines. This kit is designed to support up to 1000 horsepower, making it ideal for boosted applications. It includes all necessary components for a comprehensive EFI upgrade, from the intake manifold to the fuel delivery system and ECU.

KEY FEATURES AND BENEFITS:

• Supports up to 1000 horsepower, suitable for high-performance LS engine builds.
• Complete master kit includes intake manifold, fuel injectors, ECU, fuel pump, and wiring harness.
• Self-learning technology simplifies tuning and maintains optimal air/fuel ratios.
• Sequential fuel and spark control with individual cylinder trim for precise adjustments.
• 3-Bar MAP sensor for accurate readings in boosted applications up to 30 psi.
• 80 lbs./hr. injectors and 102mm throttle body provide high fuel and airflow.
• In-tank fuel pump options cater to various fuel tank setups.
• Compatibility with multiple fuel types, including gasoline, alcohol, and methanol.
• Go Spark LS3 style coil packs included.

SPECIFICATIONS:

• Maximum Horsepower: 1000 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder: Yes (Boost/Nitrous oxide)
• ECU: Included
• Fuel Pump: Included (In-tank)
• Intake Manifold: Included (Cathedral port)
• Injector Size: 80 lbs./hr.
• Throttle Body: 102mm
• MAP Sensor: 3-Bar
• Airflow Rate: 1450 cfm

HOW TO USE:

• Preparation: Disconnect the vehicle’s battery and remove the existing intake and fuel system.
• Intake Installation: Install the FiTech cathedral port intake manifold onto the LS engine heads.
• Fuel System Installation: Mount the in-tank fuel pump, connect fuel lines, and install the fuel pressure regulator.
• Injector and Fuel Rail Installation: Install the 80 lbs./hr. injectors and connect the high-volume fuel rails.
• Throttle Body Installation: Mount the 102mm throttle body onto the intake manifold.
• Sensor Installation: Install the MAP, IAT, TPS, and oxygen sensors.
• ECU and Wiring: Connect the wiring harness to the sensors, injectors, and ECU.
• Coil Pack Installation: Install the Go Spark LS3 style coil packs.
• Handheld Controller: Connect the handheld controller and follow the on-screen prompts for initial setup.
• Initial Startup and Tuning: Start the engine and use the self-learning feature to fine-tune the fuel and spark settings.
• Final Adjustments: After a period of driving, make any necessary adjustments using the handheld controller.

BENEFITS OF USING THE FITECH LS 1000 HP EFI SHORT INTAKE DUAL PUMP MASTER KIT (78930):

• Enhanced engine performance and power output.
• Improved fuel efficiency and throttle response.
• Simplified tuning with self-learning technology.
• Comprehensive kit eliminates the need for individual component sourcing.
• Reliable fuel delivery and precise engine control.
• Boosted application ready.

FEATURES:

• Fabricated 3mm thick aluminum sheet metal intake manifold.
• Cast, cable-activated billet aluminum 102mm throttle body.
• Handheld controller with color touch screen and windshield mount.
• High volume billet fuel rails.
• Connects to 24x and 58x cam sensors.
• Knock sensor control connects to factory sensors.
• Tach output driver works with most tachometers.
• Two programmable electric fan outputs.
• Supplied with WBO2 sensors.
• In-tank dual pump module option.
