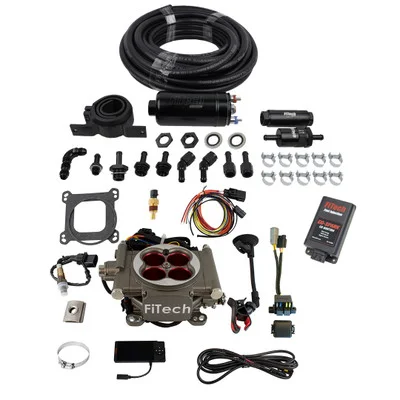

FiTech Go Street EFI Master Kit w/ Inline Fuel Pump & CDI Box (93103)

Description

The FiTech Go Street EFI Master Kit w/ Inline Fuel Pump & CDI Box (93103) provides a straightforward path to upgrade from a traditional carburetor to modern electronic fuel injection. Designed for engines up to 400 horsepower, this system offers self-tuning capabilities, improving both performance and fuel efficiency. It includes all essential components for a seamless installation.

KEY FEATURES AND BENEFITS:

• Self-Tuning Functionality: Automatically adjusts fuel delivery for optimal performance.
• High Horsepower Support: Designed for engines up to 400 horsepower, replacing standard 4-barrel carburetors.
• Complete Kit: Includes an inline fuel pump, ECU, and handheld display for a comprehensive upgrade.
• Accurate Fuel Management: Wideband oxygen sensor and speed density metering for precise control.

SPECIFICATIONS:

• Maximum Horsepower: 400 HP
• Injection Style: Throttle body
• ECU Included: Yes (mounted on throttle body)
• Fuel Pump Included: Yes (inline, 255 lph)
• Throttle Body Mounting Flange: 4-barrel square bore
• Airflow Rate: 850 CFM
• Injector Size: 62 lbs/hr
• Self-Tuning: Yes
• Metering Style: Speed density (MAP-N)
• User Interface: 4.5 inch handheld display
• Fuel Compatibility: Gasoline, alcohol, methanol, flex fuel

HOW TO USE:

• Remove Existing Carburetor: Detach the current 4-barrel carburetor from the intake manifold.
• Install FiTech Throttle Body: Mount the FiTech throttle body onto the 4-barrel intake manifold.
• Connect Wiring Harness: Attach the provided wiring harness to the throttle body and other necessary sensors.
• Install Fuel Pump: Mount the inline fuel pump and connect fuel lines to the throttle body.
• Connect Oxygen Sensor: Install the wideband oxygen sensor in the exhaust system.
• Connect Handheld Display: Plug the handheld display into the wiring harness for monitoring and adjustments.
• Initial Setup: Follow the on-screen instructions on the handheld display to input engine parameters.
• Start Engine: Start the engine and allow the self-tuning feature to calibrate the fuel delivery.
• Fine-Tune (Optional): Use the handheld display to make minor adjustments as needed.

BENEFITS OF USING THE FITECH GO STREET EFI MASTER KIT W/ INLINE FUEL PUMP & CDI BOX (93103):

• Improved Fuel Efficiency: Compared to a carburetor.
• Enhanced Engine Performance: Through precise fuel control.
• Simplified Installation: With a complete kit for easy setup.
• Self-Tuning Feature: Eliminates the need for manual adjustments.
• Reliable Operation: With included fuel pump and sensors.
• Easy Monitoring: Adjustments made simple with the handheld display.

FEATURES:

• Integrated ECU: Directly on the throttle body to reduce wiring clutter.
• Bosch 4.2 Wideband Oxygen Sensor: Provides accurate readings for fuel management.
• 43mm Venturis: For optimal airflow.
• Built-In Fuel Pressure Regulator: Ensures consistent fuel delivery.
• Swirl Spray Annular Discharge Design: For efficient atomization.
• Three Fuel Inlet Connections: Allow for flexible installation options.
• Voltage Control Fuel Pump Output: For improved efficiency.
• Includes Ignition Control Box: For enhanced performance.
