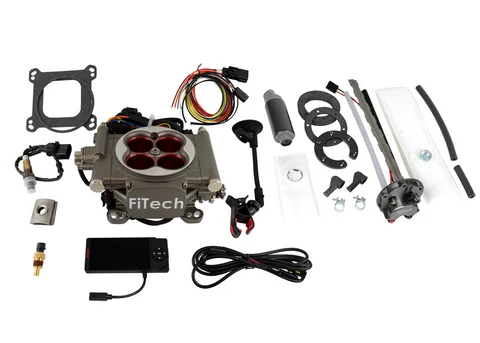

FiTech Go Street 400 HP Cast EFI w/ In Tank Retrofit Kit (36203)

Description

The FiTech Go Street 400 HP Cast EFI w/ In Tank Retrofit Kit (36203) offers a straightforward way to transition from a carburetor to electronic fuel injection. Designed for engines up to 400 horsepower, this system simplifies the conversion process with its self-learning capabilities and included in-tank fuel pump module. This kit is built for street applications, providing improved performance and fuel efficiency.

KEY FEATURES AND BENEFITS:

• Self-Tuning Feature: Automatically adjusts fuel delivery, eliminating the need for complex tuning.
• Go Fuel In-Tank Module: Simplifies fuel system upgrades, fitting tanks 6 to 15 inches deep.
• Throttle Body Design: 4-barrel throttle body replaces standard carburetors.
• High Airflow Rate: 850 CFM airflow supports engines up to 400 HP.
• Fuel Compatibility: Works with gasoline and E85 fuels for versatile applications.

SPECIFICATIONS:

• Maximum Horsepower: 400 HP
• Injection Style: Throttle body
• Metering Style: Speed density (Map-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Airflow Rate: 850 CFM
• Injector Size: 62 lbs/hr
• Fuel Pump Flow Rating: 255 LPH
• Fuel Pump Style: In-tank
• Display Size: 4.5 inches
• Fuel Type: Gasoline, E85, Methanol, Alcohol
• Compatibility: Engines with 4-barrel square bore intake manifolds and fuel tanks ranging from 6-15 inches deep

HOW TO USE:

• Remove Existing Carburetor: Detach the current 4-barrel carburetor from the intake manifold.
• Install FiTech Throttle Body: Mount the FiTech 36203 throttle body onto the intake manifold.
• Install In-Tank Fuel Pump: Place the Go Fuel in-tank module inside the fuel tank, ensuring proper depth and secure fittings.
• Connect Wiring Harness: Route and connect the wiring harness to the necessary sensors and power sources.
• Install Oxygen Sensor: Mount the wideband oxygen sensor in the exhaust system.
• Connect Fuel Lines: Connect the fuel lines from the in-tank pump to the throttle body.
• Power Up and Initial Setup: Connect the display and follow the on-screen instructions for initial setup.
• Start Engine and Allow Self-Tuning: Start the engine and allow the system to self-learn and adjust fuel delivery.
• Verify Operation: Check fuel pressure, sensor readings, and overall engine performance.

BENEFITS OF USING THE FITECH GO STREET 400 HP CAST EFI W/ IN TANK RETROFIT KIT (36203):

• Simplified Conversion: Easy transition from carburetor to EFI.
• Automatic Fuel Adjustment: Ensures optimal performance without manual tuning.
• Improved Fuel Efficiency: Enhances drivability and reduces fuel consumption.
• Easier Cold Starts: Provides consistent engine operation in various conditions.
• Reduced Maintenance: Less upkeep required compared to carburetors.

FEATURES:

• Four 62 lbs/hr Fuel Injectors: Ensures precise fuel delivery.
• Built-In Fuel Pressure Regulator: Maintains optimal fuel pressure.
• Wideband Bosch 4.2 Oxygen Sensor: For accurate air-fuel ratio monitoring.
• 4.5-Inch Display: Allows for easy monitoring and adjustments.
• Universal In-Tank Fuel Pump Module: Compatible with various tank sizes.
• Cast Aluminum Throttle Body: Durable construction for performance applications.
• Sensors Included: MAP, IAT, and TPS sensors come with the kit.
• Wiring Harness and Calibration Module: Included for straightforward installation.
