FiTech Go Port EFI Standalone w/ Force Fuel & CDI Master Kit (93514)

Description

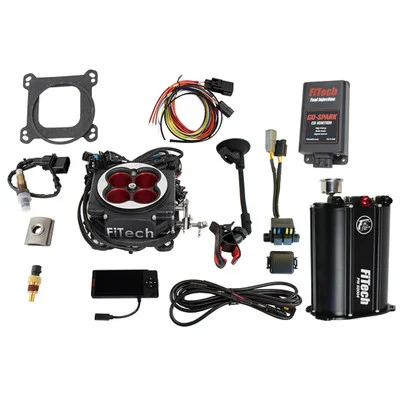

The FiTech Go Port EFI Standalone w/ Force Fuel & CDI Master Kit (93514) simplifies the process of converting a carbureted engine to electronic fuel injection. This comprehensive kit includes a high-flow throttle body with an integrated ECU, a robust fuel delivery system, and an upgraded ignition system, providing improved engine performance and efficiency. Designed to replace a standard 4-barrel carburetor, this system offers self-tuning capabilities with user-adjustable settings, making it suitable for a wide range of applications.

KEY FEATURES AND BENEFITS:

• The FiTech 93514 Go Port EFI System delivers several key benefits, including a self-tuning ECU built into the throttle body, simplifying installation and setup.
• The Force Fuel system ensures a consistent fuel supply, supporting up to 800 hp on gasoline.
• The Go-Spark CDI ignition provides a strong, consistent spark, improving starting, idle quality, and overall combustion.
• The 4.5-inch touch screen controller allows for easy monitoring and adjustments.
• This kit is designed for a direct replacement of 4-barrel carburetors.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
• Timing Control Compatible: Yes
• ECM Included: Yes
• Self Tuning: Yes
• User Tunable: Yes
• Fuel System Included: Surge tank
• Ignition System Included: Ignition box
• User Interface Included: 4.5 in. display
• Metering Style: Speed density
• Throttle Body Mounting Flange: 4-barrel square bore
• Airflow Rate (cfm): 850 cfm
• Venturi Diameter (mm): 44.00mm
• Fuel System Support: 800 hp on gasoline
• Fuel Pressure Regulation: 58 psi

HOW TO USE:

• Preparation: Remove the existing 4-barrel carburetor and related components.
• Throttle Body Installation: Mount the FiTech throttle body onto the intake manifold using the provided gaskets.
• Fuel System Setup: Install the Force Fuel system, connecting the fuel pump, filter, and regulator. Attach the provided fuel lines.
• Ignition System Connection: Install the Go-Spark CDI box and connect it to the distributor and other necessary components.
• Sensor Installation: Install the O2, MAP, IAT, TPS, and IAC sensors according to the provided instructions.
• Wiring Harness Connection: Connect the wiring harness to the throttle body, sensors, fuel system, and ignition system.
• Controller Setup: Connect the handheld touch screen controller and follow the on-screen instructions for initial setup and tuning.
• Initial Start and Tuning: Start the engine and allow the self-tuning feature to adjust the fuel and ignition settings. Fine-tune as needed using the controller.

BENEFITS OF USING THE FITECH GO PORT EFI STANDALONE W/ FORCE FUEL & CDI MASTER KIT (93514):

• Improved fuel efficiency compared to traditional carburetors.
• Enhanced engine performance and throttle response.
• Simplified installation and setup with self-tuning capabilities.
• Consistent fuel delivery and ignition, even under demanding conditions.
• User-friendly interface for monitoring and adjustments.
• Modernizes older carbureted engines.

FEATURES:

• Integrated ECU within the throttle body for simplified wiring.
• Surge tank fuel system to prevent fuel starvation.
• Touch screen display for real-time engine monitoring.
• Speed density based fuel calculations.
• Direct replacement for 4150 flange 4-barrel carburetors.
• 850 CFM throttle body.
• Compatibility with various distributor types.
