Description

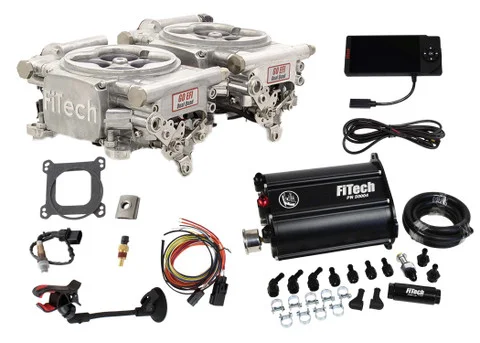

The FiTech Go EFI 2×4 625HP Aluminum Master Kit w/Force Fuel (35261) is a complete electronic fuel injection solution designed for high-performance engines. This dual 4-barrel throttle body system provides precise fuel delivery and self-tuning capabilities, making it ideal for classic cars, hot rods, and race vehicles. The integrated Force Fuel system ensures a consistent and reliable fuel supply, even under demanding conditions.
KEY FEATURES AND BENEFITS:
- Dual 4-Barrel Throttle Bodies: Provides high airflow and performance for engines up to 625 horsepower.
- Self-Tuning Functionality: Automatically adjusts fuel delivery for optimal performance and efficiency.
- Force Fuel System: Ensures consistent fuel pressure and prevents fuel starvation.
- Touchscreen Handheld Controller: Enables easy setup, adjustments, and data monitoring.
- 80 lbs/hr Injectors: Delivers ample fuel for high-horsepower applications.
- Comprehensive Sensor Suite: Includes wideband oxygen sensor, MAP sensor, IAT sensor, TPS sensor, and IAC motor for accurate engine management.
- Data Logging: Records engine data for performance analysis and tuning.
SPECIFICATIONS:
- Fuel Injection Style: Throttle body
- Fuel Injection System Type: Dual 4-Barrel Throttle Bodies (4150 Flange)
- Maximum Horsepower: 625
- Injector Size: 80 lbs/hr
- Fuel Pump Flow: 340 lph (Force Fuel), 255 lph (Mini Force Fuel)
- Throttle Body Material: Cast aluminum
- Venturi Diameter: 44.45mm
- Airflow Rate: 850 cfm
- ECU: Included and integrated
- Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
- User Interface: 4.5 in. display
HOW TO USE:
- Installation: Mount the throttle bodies and Force Fuel system according to the provided instructions.
- Wiring: Connect the wiring harness to the engine sensors and power supply.
- Sensor Installation: Install the oxygen sensor, MAP sensor, IAT sensor, TPS sensor, and IAC motor.
- Fuel Line Connection: Connect the fuel lines from the Force Fuel system to the throttle bodies.
- Initial Setup: Use the handheld controller to input engine parameters and perform initial calibration.
- Self-Tuning: Start the engine and allow the system to self-tune.
- Fine Tuning: Use the handheld controller to make adjustments as needed.
- Data Logging: Monitor engine performance and make adjustments based on the data logs.
BENEFITS OF USING THE FITECH GO EFI 2X4 625HP ALUMINUM MASTER KIT W/FORCE FUEL (35261):
- Improved engine performance and throttle response.
- Enhanced fuel efficiency.
- Simplified installation compared to traditional carburetors.
- Precise fuel control and tuning capabilities.
- Reliable fuel delivery under various operating conditions.
- Modernizes classic vehicles.
FEATURES:
- Dual Throttle Body Arrangement: For increased airflow.
- Integrated ECU: Within one of the throttle bodies.
- Compatibility: Works with various intake manifold types.
- Adjustable Fan Control Switch: For optimal cooling.
- CDI Ignition System Compatibility: Allows seamless integration.
- Multiple Fuel Inlet Connection Options: For flexibility in setup.
- Stainless Steel Polished Linkages: For durability and aesthetics.
- 8GB of Data Logging Capacity: For extensive performance analysis.
