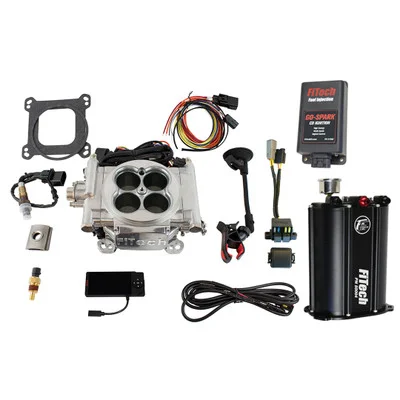

FiTech EFI 4 System Aluminum Finish Kit w/Force Fuel & CDI Box (93501)

Description

The FiTech EFI 4 System Aluminum Finish Kit w/ Force Fuel & CDI Box (93501) is designed to replace traditional carburetors with modern electronic fuel injection. It offers improved efficiency and performance for engines producing 250 to 600 horsepower. This kit includes a self-tuning ECU, a Force Fuel system for simplified fuel delivery, and an 850 CFM throttle body.

KEY FEATURES AND BENEFITS:

• Self-Tuning ECU: Automatically adjusts fuel and timing for optimal performance.
• Force Fuel System: Provides consistent high-pressure fuel delivery using an internal 340 lph pump.
• 850 CFM Throttle Body: Handles high airflow demands for performance engines.
• 80 lbs./hr Injectors: Delivers adequate fuel for high horsepower applications.
• Timing Control: Allows for electronic control of ignition timing.
• Comprehensive Sensor Package: Includes O2, MAP, IAT, and TPS sensors.
• 4.5-Inch Handheld Display: Enables monitoring and adjustments.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control: Yes
• ECU Included: Yes
• Fuel Pump Included: Yes (Force Fuel System)
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Quantity: 4
• Venturi Diameter: 43.00mm
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs./hr.
• Fuel Pump Flow Rating: 340 lph
• Metering Style: Speed Density

HOW TO USE:

• Remove Existing Carburetor: Disconnect and remove the existing carburetor and intake manifold.
• Install Throttle Body: Mount the FiTech throttle body onto the intake manifold.
• Install Force Fuel System: Mount the Force Fuel system and connect to your existing fuel pump.
• Connect Wiring Harness: Connect the wiring harness to the ECU and sensors.
• Install Sensors: Mount the O2, MAP, IAT, and TPS sensors.
• Connect Fuel Lines: Connect the fuel lines from the Force Fuel system to the throttle body.
• Connect Ignition Control (if applicable): Connect the ignition control wires to your ignition system.
• Power Up and Configure: Connect the handheld display and follow the on-screen instructions to configure the ECU.
• Start and Self-Tune: Start the engine and allow the ECU to self-tune.
• Fine Tune: If needed, use the handheld display to fine-tune the system.

BENEFITS OF USING THE FITECH EFI 4 SYSTEM ALUMINUM FINISH KIT W/FORCE FUEL & CDI BOX (93501):

• Improved Fuel Efficiency: Compared to a carburetor.
• Enhanced Engine Performance: Provides better throttle response.
• Simplified Fuel System Installation: Easy setup with comprehensive components.
• Consistent Engine Operation: Performs well across varying conditions.
• Reduced Emissions: Contributes to cleaner operation.
• Easier Engine Starting: More reliable startup performance.

FEATURES:

• Integrated Fuel Pressure Regulator: Within the throttle body.
• Utilizes Speed Density Metering: For accurate fuel calculations.
• Cast Aluminum Throttle Body: Comes with a polished finish.
• Ability to Run Alcohol, Gasoline, or Methanol Fuels: Flexible fuel options.
• Internal IAC Motor: For effective idle control.
• External Fuel Pump: Used in the Force Fuel system.
• User Tunable Parameters: Via the handheld display.
• Complete Kit: Sold with all necessary components.
