FiTech EFI 4 600HP Power Adder Matte Black w/ Retrofit Kit (36204)

Description

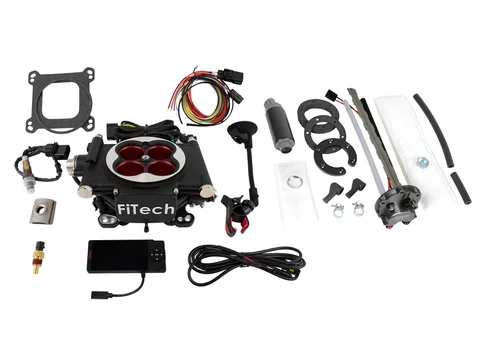

The FiTech EFI 4 600HP Power Adder Matte Black w/ Retrofit Kit (36204) provides a modern electronic fuel injection solution for engines up to 600 horsepower. This kit includes a self-tuning 4-barrel throttle body, an integrated ECU, and a universal in-tank fuel pump module. Designed for ease of installation and improved engine performance, it offers a practical upgrade for classic vehicles and performance applications.

KEY FEATURES AND BENEFITS:

• Significant Performance Improvements: Enhances engine performance and driveability.
• Self-Tuning Capability: Automatically adjusts fuel delivery for optimal performance in various conditions.
• In-Tank Fuel Pump Module: Simplifies installation and ensures consistent fuel delivery.
• Versatile Fuel Compatibility: Supports gasoline, E85, and methanol, accommodating different engine setups.
• Simplified Wiring: Integrated ECU and sensors minimize wiring complexity.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank, 340 LPH)
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
• Throttle Body Mounting Flange: 4-barrel square bore (4150 Flange)
• Venturi Quantity: 4
• Venturi Diameter: 43 mm
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs./hr
• Fuel Compatibility: Gasoline, E85, Ethanol, Methanol, Alcohol
• Display: 4.5 inch touchscreen
• Fuel Tank Depth Compatibility: 6-15 inches
• Fitting Type: -6 AN ORB
• Compatibility: Most 4-bbl intake manifolds

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
• Fuel System Installation: Install the in-tank fuel pump module in the fuel tank, ensuring proper depth and secure connections.
• Throttle Body Installation: Mount the FiTech throttle body onto the intake manifold, securing it with the provided hardware.
• Wiring Connections: Connect the wiring harness to the ECU and sensors, following the manufacturer’s instructions for proper connections.
• Sensor Installation: Install the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor in their designated locations.
• Fuel Line Connections: Connect the fuel lines to the throttle body and fuel pump module, ensuring leak-free connections.
• Initial Setup: Connect the 4.5 inch display and follow the on-screen instructions for initial setup and configuration.
• Engine Start and Self-Tuning: Start the engine and allow the self-tuning feature to adjust fuel delivery. Monitor engine performance and make any necessary adjustments using the display.
• Final Checks: Verify all connections and system functions, ensuring proper operation.

BENEFITS OF USING THE FITECH EFI 4 600HP POWER ADDER MATTE BLACK W/ RETROFIT KIT (36204):

• Improved Engine Performance: Enhances throttle response and overall engine efficiency.
• Simplified Installation: Designed for easy setup with self-tuning capabilities.
• Enhanced Fuel Efficiency: Provides consistent fuel delivery for better gas mileage.
• Reliable Operation: Integrated ECU and sensors ensure dependable performance.
• Modern Engine Operation: Offers advanced tuning options for enhanced performance.

FEATURES:

• 4-Barrel Throttle Body Design: Optimizes airflow for improved performance.
• Integrated ECU: Includes cooling fan control for better engine management.
• Wide-Band Oxygen Sensor: Provides precise fuel mixture monitoring.
• 4.5 Inch Touchscreen Display: Facilitates easy configuration and monitoring of system performance.
• 80 lbs./hr Fuel Injectors: Ensure efficient fuel delivery tailored to performance needs.
• Sensors Included: MAP, IAT, and TPS sensors come with the kit for comprehensive monitoring.
• Metering Options: Supports both speed density and Alpha-N metering for versatile tuning.
