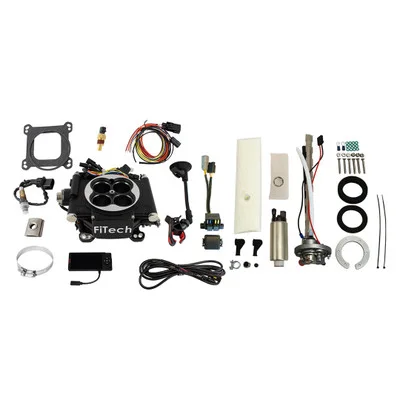

FiTech EFI 4 600 HP Matte Black w/ 340 LPH In-Tank Pump (36602)

Description

The FiTech EFI 4 600 HP Matte Black w/ 340 LPH In-Tank Pump (36602) simplifies the process of converting your carbureted engine to electronic fuel injection. Designed for engines producing up to 600 horsepower, this comprehensive kit includes everything needed for a complete EFI conversion, featuring a 340 LPH in-tank fuel pump and a self-tuning ECU. This system is ideal for those seeking improved performance and drivability in their everyday drivers, weekend cruisers, or bracket racing vehicles.

KEY FEATURES AND BENEFITS:

• EFI Conversion: Converts carbureted engines to EFI, supporting up to 600 horsepower.
• Consistent Fuel Delivery: Includes a 340 LPH in-tank fuel pump for reliable fuel supply.
• Self-Tuning Capabilities: Simplifies initial setup and ongoing adjustments.
• Compatibility: Works with 4-barrel square bore intake manifolds.
• User-Friendly Interface: 4.5-inch touchscreen controller for easy monitoring and adjustments.
• Enhanced Engine Tuning: Offers timing control compatibility for improved performance.
• High-Performance Components: 850 CFM throttle body and 80 lbs/hr injectors ensure ample airflow and fuel delivery.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control Compatible: Yes
• Power Adder Compatible: No
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank, 340 LPH)
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs/hr
• User Interface: 4.5-inch touchscreen display
• Fuel Type Compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and intake manifold (if necessary).
• Installation: Install the FiTech throttle body onto the 4-barrel intake manifold. Mount the in-tank fuel pump module within the fuel tank.
• Wiring: Connect the wiring harness to the appropriate sensors and power sources, following the provided instructions.
• Sensor Installation: Install the oxygen sensor, coolant sensor, and other necessary sensors.
• Fuel System Connection: Connect the fuel lines from the in-tank pump to the throttle body.
• ECU Setup: Connect the handheld touchscreen controller and follow the on-screen prompts to configure the ECU.
• Initial Start-Up: Start the engine and allow the self-tuning feature to adjust the fuel and air mixture.
• Fine Tuning: Use the touchscreen controller to monitor and fine-tune the system as needed.

BENEFITS OF USING THE FITEC EFI 4 600 HP MATTE BLACK W/ 340 LPH IN-TANK PUMP (36602):

• Improved Engine Performance: Enhances throttle response and overall performance.
• Enhanced Fuel Efficiency: Achieves better fuel efficiency through precise delivery.
• Simplified Installation: Comes as a comprehensive kit for easy setup.
• Easy Monitoring and Adjustment: Touchscreen controller facilitates user-friendly adjustments.
• Reliable Operation: Features self-tuning capabilities for consistent performance.

FEATURES:

• Built-in ECU: Includes MAP sensor and fuel pressure regulator.
• Wet Annular Discharge Design: Ensures efficient fuel atomization.
• 850 CFM Throttle Body: Features a 44mm venturi diameter.
• 80 lbs/hr Injectors: Provides high-flow fuel delivery.
• In-Tank 340 LPH Fuel Pump Module: Comes with integrated regulator.
• 4.5-Inch Touchscreen Controller: For system monitoring and adjustments.
• Comprehensive Wiring Harness: Simplifies installation process.
• Oxygen Sensor and Other Necessary Sensors: Included for complete setup.
• Speed Density Based System: Ensures optimized fuel delivery.
