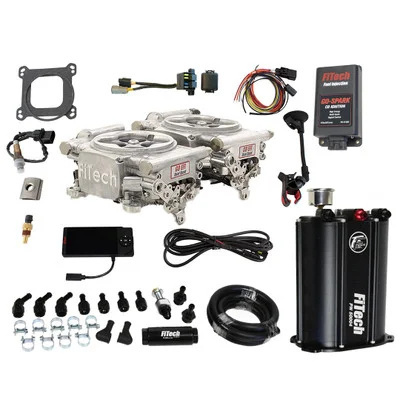

FiTech EFI 2×4 System Aluminum Finish Kit w/ Force Fuel & CDI (93561)

Description

The FiTech EFI 2×4 System Aluminum Finish Kit w/ Force Fuel & CDI (93561) is a comprehensive electronic fuel injection solution designed for high-performance engines utilizing a dual quad intake manifold. This master kit combines dual 4-barrel throttle bodies with the Force Fuel delivery system and Go-Spark CDI ignition, offering a complete upgrade for improved engine management and power output.

KEY FEATURES AND BENEFITS:

• Robust Fuel Delivery: Features the Force Fuel system with a surge tank and high-flow pump to ensure consistent fuel pressure.
• High Power Support: Dual throttle bodies support up to 625 horsepower.
• Self-Tuning ECU: Simplifies the setup process for ease of use.
• Enhanced Spark Quality: The Go-Spark CDI ignition improves combustion and overall performance.
• Multi-Fuel Compatibility: Supports gasoline, alcohol, methanol, and flex fuel.

SPECIFICATIONS:

• Maximum Horsepower: 625 HP
• Injection Style: Throttle body
• Timing Control: Compatible
• ECU: Included (self-tuning, user-tunable)
• Fuel Pump: Included (Force Fuel system)
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Quantity: 8 (43.00mm diameter)
• Airflow Rate: 1,700 CFM
• Injector Size: 36 lbs/hr
• Fuel Pump Flow Rate: 340 lph (standard Force Fuel), 255 lph (Mini Force Fuel)
• Ignition: Go-Spark CDI included
• Display: 4.5-inch handheld
• Fuel Compatibility: Alcohol, gasoline, methanol, flex

HOW TO USE:

• Install Throttle Bodies: Attach the dual throttle bodies onto the intake manifold using the provided gaskets.
• Mount Force Fuel System: Secure in a suitable location and connect the fuel lines as per the instructions.
• Install Go-Spark CDI: Connect the ignition system to the distributor’s trigger signal.
• Connect Wiring Harness: Attach to the throttle bodies, sensors, and ECU.
• Install Sensors: Place the oxygen, MAP, IAT, and TPS sensors in their designated locations.
• Connect Handheld Display: Link the display to the ECU for monitoring and adjustments.
• Start Engine: Allow the self-tuning ECU to calibrate the fuel mixture.
• Tune System: Fine-tune using the handheld display as needed.

BENEFITS OF USING THE FITECH EFI 2×4 SYSTEM ALUMINUM FINISH KIT W/FORCE FUEL & CDI (93561):

• Performance Improvements: Achieves precise fuel and ignition control for enhanced performance.
• Consistent Fuel Delivery: The Force Fuel system eliminates fuel starvation issues.
• Simplified Setup: The self-tuning ECU aids in quick installation and adjustments.
• Improved Combustion: Go-Spark CDI ignition enhances combustion efficiency for increased power.
• Fuel Type Flexibility: Compatible with various fuel types for diverse applications.

FEATURES:

• Dual 4-Barrel Throttle Body Design: Increases airflow for better performance.
• Integrated ECU: Offers self-tuning and user-tunable capabilities.
• Force Fuel System: Includes a high-flow internal pump and surge tank.
• Go-Spark CDI Ignition: Provides improved spark quality.
• Comprehensive Sensor Package: Includes oxygen, MAP, IAT, and TPS sensors.
• 4.5-Inch Handheld Display: For real-time monitoring and adjustments.
• Polished Cast Aluminum Throttle Body: Durable and visually appealing.
• External Fuel Pump and Regulator: Ensures stable fuel pressure.
• Complete Wiring Harness and Installation Hardware: Provided for ease of installation.
