FiTech EFI 2×4 1200HP Power Adder Matte Black Finish w/ CDI (93064)

Description

The FiTech EFI 2×4 1200HP Power Adder Matte Black Finish w/ CDI (93064) is engineered for high-horsepower dual-quad applications. This system offers electronic fuel injection designed to support boosted engines, nitrous oxide, and naturally aspirated setups up to 1200 horsepower. It provides a comprehensive solution for those seeking enhanced engine performance and precise fuel delivery.

KEY FEATURES AND BENEFITS:

• High Horsepower Support: Designed for dual four-barrel intake manifolds, supporting up to 1200 HP with gasoline.
• Power Adder Compatibility: Works with superchargers and nitrous oxide, offering timing control for enhanced performance.

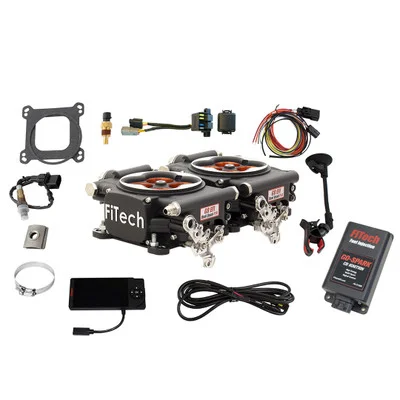

• Comprehensive Kit: Includes an ECM, 80 lbs./hr injectors, and a 1,700 cfm airflow rate.
• Self-Tuning Capabilities: Simplifies setup and optimization with a 4.5-inch handheld display.
• Multi-Fuel Compatibility: Supports various fuels, including gasoline, alcohol, and methanol.

SPECIFICATIONS:

• Maximum Horsepower: 1200 HP (gasoline)
• Injection Style: Throttle body
• Timing Control: Yes
• Power Adder Compatibility: Yes (boost/nitrous)
• ECU Included: Yes
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Quantity: 8
• Injector Size: 80 lbs./hr
• Airflow Rate: 1,700 cfm
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex
• Display: 4.5 inch handheld

HOW TO USE:

• Installation: Mount the dual throttle bodies onto your dual-quad intake manifold using the 4150 flange.
• Sensor Installation: Install the provided oxygen sensor, MAP sensor, IAT sensor, TPS sensor, and CTS sensor.
• Wiring: Connect the wiring harness to the ECM and all necessary sensors and components.
• Fuel System: Connect the fuel lines to the built-in fuel pressure regulator. (Fuel pump not included)
• Initial Setup: Power on the system and use the handheld controller to input basic engine parameters.
• Self-Tuning: Start the engine and allow the system to self-tune based on sensor feedback.
• Fine-Tuning: Use the handheld controller or optional laptop software to make adjustments as needed.
• Power Adder Setup (if applicable): Configure boost and nitrous timing settings using the handheld controller.

BENEFITS OF USING THE FITECH EFI 2X4 1200HP POWER ADDER MATTE BLACK FINISH W/ CDI (93064):

• Enhanced Engine Performance: Through precise fuel delivery.
• Improved Throttle Response: For better drivability.
• High-Horsepower Compatibility: Supports boosted applications.
• Comprehensive Sensor Package: For accurate engine monitoring.
• Flexible Fuel Options: Ability to use various fuel types.
• Easy Upgrade: Transition from dual carburetor setups.

FEATURES:

• Dual 4-Barrel Throttle Body Design: For high airflow.
• 8 Flow-Matched Injectors: Ensures optimal performance.
• 2.5 BAR Internal MAP Sensor: For accurate pressure readings.
• Fan Control: For dual fans.
• Boost and Nitrous Timing Control: For enhanced performance.
• Built-In Pressure Regulator: For consistent fuel pressure.
• Pro-Tuning Laptop Software Compatibility: For advanced tuning options.
• Die-Cast Aluminum Throttle Body Construction: For durability.
• Go Spark CDI Box Included: In some kits.
• Oxygen Bung Kit Included: For easy installation.
• Return Plugs Included: For convenience.
