FiTech EFI 2-Barrel 400 HP Classic Gold Master Kit (93191)

Description

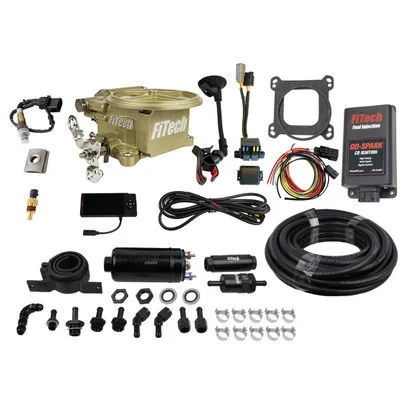

The FiTech EFI 2-Barrel 400 HP Classic Gold Master Kit (93191) provides a comprehensive solution for converting carbureted engines to electronic fuel injection. This kit is designed for engines producing up to 400 horsepower and includes a 2-barrel throttle body, Go-Spark CDI ignition, fuel delivery components, and a user-friendly handheld controller. It aims to improve engine performance, fuel efficiency, and overall drivability.

KEY FEATURES AND BENEFITS:

• EFI Conversion: Replaces traditional 2-barrel carburetors with a modern electronic fuel injection system, offering improved fuel delivery and engine management.
• Go-Spark CDI Ignition: Enhances spark output for better combustion, resulting in improved starting, idle quality, and throttle response.
• Self-Tuning Capability: The system automatically adjusts fuel delivery based on sensor readings, simplifying the setup process.
• User-Tunable: The included handheld controller allows for fine-tuning of fuel and ignition parameters.
• Complete Fuel Delivery System: Includes an inline fuel pump, filters, hoses, and fittings for a complete fuel system upgrade.
• Integrated ECU: The electronic control unit is built into the throttle body, simplifying installation.

SPECIFICATIONS:

• Fuel Injection Style: Throttle body
• Fuel Injection System Type: Single 2-Barrel Throttle Body (2300 Flange)
• Maximum Horsepower with Gas: 400 HP
• Timing Control Compatible: Yes
• ECM Included: Yes
• Self Tuning: Yes
• User Tunable: Yes
• Fuel System Included: Inline pump kit
• Fuel Pump Flow Rating (lph): 340 lph
• Injector Size (lbs/hr): 62 lbs./hr.
• Throttle Body Mounting Flange: Holley 2300
• Airflow Rate (cfm): 500 cfm

HOW TO USE:

• Remove Existing Carburetor: Disconnect the existing carburetor and fuel lines.
• Install Throttle Body: Mount the FiTech 2-barrel throttle body onto the intake manifold using the provided gasket.
• Install Fuel System: Mount the inline fuel pump and connect the fuel lines, filters, and regulator.
• Install Go-Spark Ignition: Connect the Go-Spark CDI ignition box to the distributor and power source.
• Connect Sensors: Install and connect the oxygen sensor, MAP sensor, IAT sensor, TPS sensor, and coolant sensor.
• Connect Wiring Harness: Connect the wiring harness to the throttle body, sensors, ignition, and power source.
• Connect Handheld Controller: Connect the handheld controller to the system for initial setup and tuning.
• Initial Setup: Use the handheld controller to input engine parameters and perform initial setup.
• Start and Tune: Start the engine and allow the system to self-tune. Fine-tune as needed using the handheld controller.

BENEFITS OF USING THE FITECH EFI 2-BARREL 400 HP CLASSIC GOLD MASTER KIT (93191):

• Improved engine performance and throttle response.
• Enhanced fuel efficiency compared to traditional carburetors.
• Simplified engine starting and idle quality.
• Reduced emissions.
• Increased control over engine parameters.
• Modernizes older engines.

FEATURES:

• Handheld controller with 4.5-inch display.
• Inline frame mount fuel delivery kit.
• Wideband oxygen sensor and bung kit.
• Comprehensive wiring harness.
• Calibration module.
• Mini USB cable.
• Coolant sensor.
