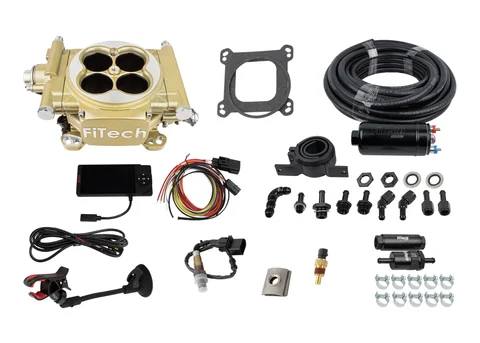

FiTech Easy Street EFI System Gold w/ Inline Fuel Pump (31005)

Description

The FiTech Easy Street EFI System Gold w/ Inline Fuel Pump (31005) simplifies the transition from carburetor to electronic fuel injection. Designed for naturally aspirated engines, this kit provides a complete solution for improved engine performance and efficiency. It’s ideal for classic cars and retrofit applications, offering self-tuning technology and a comprehensive fuel delivery system.

KEY FEATURES AND BENEFITS:

• Self-Tuning EFI: Replaces traditional 4-barrel carburetors for enhanced performance.
• Horsepower Compatibility: Designed for engines producing 200 to 600 HP.
• Improved Efficiency: Offers better fuel efficiency and throttle response.
• Complete Kit: Includes an inline fuel pump, fuel hoses, and filters for a full fuel delivery solution.
• Easy Installation: Pre-programmed ECU allows for straightforward setup and compatibility with various ignition systems.

SPECIFICATIONS:

• Horsepower Range: 200-600 HP
• Throttle Body: 850 CFM, 4-barrel square bore
• Injectors: 80 lbs/hr
• Fuel Pump: 255 LPH external inline pump
• ECU: Self-tuning, included
• Sensors: Wideband O2, MAP, IAT, TPS
• Fuel Type: Gasoline, alcohol, methanol, flex fuel
• Timing Control: None
• Transmission Control: None

HOW TO USE:

• Remove Existing Carburetor: Detach the current 4-barrel carburetor from the intake manifold.
• Install FiTech Throttle Body: Mount the FiTech throttle body onto the intake manifold using the provided gasket.
• Connect Fuel System: Install the inline fuel pump, fuel filters, and fuel hoses, connecting them to the fuel tank and throttle body.
• Wire ECU and Sensors: Connect the ECU wiring harness to the necessary sensors (O2, MAP, IAT, TPS) and ignition system.
• Connect Tach Signal: Connect the tach signal wire to the coil, HEI, or CDI ignition system.
• Connect Power and Ground: Connect the power and ground wires from the ECU to the vehicle’s electrical system.
• Initial Setup: Use the handheld controller to input basic engine parameters.
• Start Engine: Start the engine and allow the self-tuning system to adjust fuel delivery.
• Fine-Tune (Optional): Use the handheld controller to make minor adjustments as needed.

BENEFITS OF USING THE FITECH EASY STREET EFI SYSTEM GOLD W/ INLINE FUEL PUMP (31005):

• Improved Efficiency: Better fuel efficiency compared to carburetors.
• Smoother Operation: Delivers a smoother idle and enhanced throttle response.
• Simplified Installation: Features self-tuning technology for easy setup.
• Comprehensive Kit: Comes with all necessary components for installation.
• Reliable Performance: Designed for classic and retrofit vehicles.

FEATURES:

• Pre-Programmed ECU: Ready for immediate operation.
• Ignition Compatibility: Accepts tach signals from various ignition types.
• Accurate Monitoring: Includes a wideband O2 sensor for precise fuel management.
• External Fuel Pump: Comes with an inline fuel pump and filters.
• Gold Cast Aluminum Throttle Body: Durable and efficient design.
• Fuel Injectors: 80 lbs/hr for optimal fuel delivery.
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N).
• Venturi Diameter: 43mm for efficient airflow.
