FiTech 750HP Oval Port EFI 4150 Flange Uni Brilliant (30-11-610)

Description

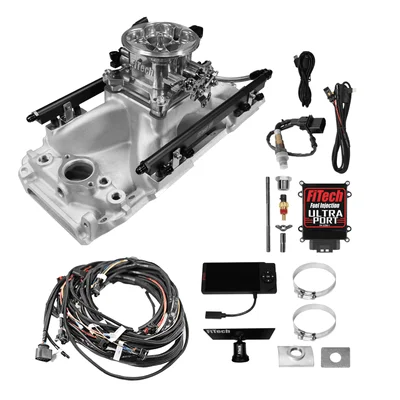

The FiTech 750HP Oval Port EFI 4150 Flange Uni Brilliant (30-11-610) is a comprehensive electronic fuel injection solution designed to enhance the performance of Big Block Chevy engines. This kit provides multi-port fuel injection, allowing for precise fuel delivery and improved engine efficiency. Rated for up to 750 horsepower when using gasoline, this system is suitable for high-performance applications, including those with forced induction or nitrous oxide. It includes all necessary components for installation, such as an ECM, intake manifold, fuel rails, injectors, sensors, and a user-friendly 4.5-inch display.

KEY FEATURES AND BENEFITS:

• Provides multi-port fuel injection: For improved engine performance and efficiency.
• Rated for up to 750 horsepower: With gasoline, suitable for high-performance applications.
• Includes self-tuning capabilities: For easy setup and operation.
• Offers user-tunable parameters: For fine-tuning engine performance.
• Compatible with various fuel types: Including gasoline, Flex, alcohol, and methanol.
• Includes all essential components: For a complete EFI system installation.

SPECIFICATIONS:

• Maximum Horsepower (Gas): 750
• Injection Style: Multi-port
• Timing Control: Compatible
• Power Adder: Forced induction/Nitrous oxide
• ECM: Included
• Self-Tuning: Yes
• User-Tunable: Yes
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
• Intake Material: Aluminum
• Throttle Body: 4-barrel square bore, 1000 cfm, 57 mm venturi diameter
• Injectors: 55 lbs/hr
• Display: 4.5 inch display
• Compatibility: Big Block Chevy engines, Oval Port Cylinder heads, Standard Deck height.

HOW TO USE:

• Preparation: Disconnect the vehicle’s battery. Remove the existing intake manifold and carburetor.
• Installation of Intake Manifold: Install the FiTech intake manifold onto the engine, ensuring proper gasket placement and torque specifications.
• Fuel System Setup: Mount the fuel rails and injectors onto the intake manifold. (Note: A separate fuel pump and pressure regulator will be required and must be installed.)
• Sensor Installation: Install all included sensors, such as the MAP sensor, IAT sensor, TPS sensor, and oxygen sensor, in their designated locations.
• Wiring Harness Connection: Connect the wiring harness to the ECM and all sensors, following the provided wiring diagram.
• Throttle Body Mounting: Attach the throttle body to the intake manifold.
• ECM Setup: Connect the 4.5-inch display to the ECM and follow the on-screen instructions for initial setup.
• Initial Tuning: Start the engine and allow the self-tuning feature to calibrate the fuel system.
• Fine-Tuning (Optional): Use the display to fine-tune engine parameters as needed.

BENEFITS OF USING THE FITECH 750HP OVAL PORT EFI 4150 FLANGE UNI BRILLIANT (30-11-610):

• Enhanced Fuel Efficiency: Improved throttle response.
• Precise Fuel Delivery: For optimal engine performance.
• Reduced Emissions: Compared to traditional carburetor systems.
• Simplified Engine Tuning: With self-tuning and user-adjustable parameters.
• Reliable Performance: Under various operating conditions.

FEATURES:

• Aluminum intake manifold construction.
• Complete wiring harness provided.
• Onboard Engine Control Module.
• Multi-port fuel rails.
• 55-pound per hour fuel injectors.
• Throttle position sensors and idle air control motors incorporated into the throttle body.
• Ability to tune in speed density or alpha-n.
• 4.5-inch display for monitoring and tuning.
