FiTech 500HP Ford 351W Offenhauser VPI EFI Uni Black (30-18-511)

Description

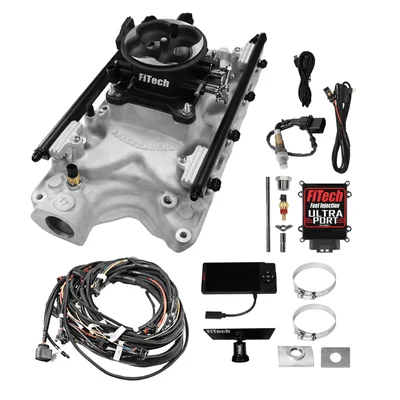

The FiTech 500HP Ford 351W Offenhauser VPI EFI Uni Black (30-18-511) is a comprehensive electronic fuel injection upgrade designed specifically for Ford 351W engines. This kit replaces traditional carburetors with a modern port injection system, providing improved performance, fuel efficiency, and precise engine control. Rated for up to 500 horsepower, this system includes all necessary components for a complete conversion, including an intake manifold, fuel rails, injectors, ECU, and a user-friendly touchscreen interface. The self-tuning ECU simplifies the setup process, while allowing for advanced user adjustments.

KEY FEATURES AND BENEFITS:

• Port Fuel Injection: Delivers precise fuel metering for enhanced throttle response and improved fuel economy.
• Self-Tuning ECU: Simplifies setup and tuning, adapting to various driving conditions.
• 500 Horsepower Rating: Supports high-performance applications, suitable for modified engines.
• Complete Kit: Includes all necessary components for a seamless conversion.
• User-Friendly Interface: Handheld touchscreen monitor for easy adjustments and monitoring.
• 3-Bar MAP Sensor: Allows for boosted applications.

SPECIFICATIONS:

• Engine Compatibility: Ford 351W (Standard Deck)
• Maximum Horsepower: 500 HP
• Fuel Injection Style: Multi-port (Port Injection)
• Throttle Body Flange: 4150
• Throttle Body Material: Cast Aluminum
• Throttle Body Finish: Black
• Venturi Diameter: 78mm
• Airflow Rate: 1000 CFM
• Injector Size: 36 lbs/hr
• Metering Style: Speed Density (Map-N) or Speed Throttle (Alpha-N)
• MAP Sensor: 3-Bar TMAP
• Fuel Type: Gasoline, Alcohol, Methanol, Flex
• Transmission Controller: No
• EGR: No
• Fuel Pump: Not Included
• Fuel Pressure Regulator: Not Included

HOW TO USE:

• Remove Existing Carburetor and Intake Manifold: Disconnect all fuel lines, vacuum lines, and electrical connections. Remove the carburetor and intake manifold from the engine.
• Install the FiTech Intake Manifold: Place the new FiTech intake manifold onto the engine, ensuring proper gasket placement. Tighten the manifold bolts to the manufacturer’s specifications.
• Install Fuel Rails and Injectors: Mount the fuel rails onto the intake manifold and install the injectors into the designated ports. Connect the fuel lines to the fuel rails.
• Install the Throttle Body: Attach the FiTech throttle body to the intake manifold, ensuring proper alignment. Connect the throttle linkage and sensors.
• Connect Wiring Harness: Connect the FiTech wiring harness to the engine sensors, injectors, and ECU. Route the harness to the designated location for the ECU.
• Install ECU and Sensors: Mount the ECU in a suitable location. Install the oxygen sensor, MAP sensor, IAT sensor, TPS sensor, and IAC motor.
• Connect Touchscreen Monitor: Connect the handheld touchscreen monitor to the ECU for setup and monitoring.
• Initial Setup and Tuning: Follow the on-screen prompts to configure the ECU for your engine. Start the engine and allow the self-tuning feature to optimize the fuel delivery.
• Fine-Tuning (Optional): Use the touchscreen monitor to make advanced adjustments to the fuel and ignition settings as needed.

BENEFITS OF USING FITECH 500HP FORD 351W OFFENHAUSER VPI EFI UNI BLACK (30-18-511):

• Improved throttle response and engine performance.
• Enhanced fuel efficiency and reduced emissions.
• Simplified tuning and setup with the self-tuning ECU.
• Precise fuel delivery for optimal engine operation.
• Modernizes older engines with advanced EFI technology.
• Ability to run boosted applications.

FEATURES:

• Matte black finish on the throttle body.
• Complete intake section included.
• Compatible with forced induction and nitrous oxide.
• 1000 CFM throttle body airflow.
• 36 lbs/hr fuel injectors.
• 4.5-inch display screen for easy user interface.
• 4 venturi throttle body.
• Speed density or Alpha-N metering options.
