FiTech 2×4 625HP Matte Black EFI w/ Force Fuel Mini Surge Tank (35662)

Description

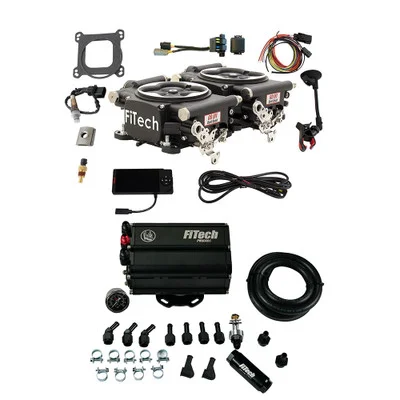

The FiTech 2×4 625HP Matte Black EFI w/ Force Fuel Mini Surge Tank (35662) is a complete electronic fuel injection solution for dual quad intake manifolds. Designed for engines up to 625 horsepower, this system offers enhanced performance and fuel efficiency. It includes all necessary components for a comprehensive EFI upgrade.

KEY FEATURES AND BENEFITS:

• This system provides a self-learning EFI capability, automatically adjusting fuel delivery for optimal performance.
• Features electronic timing control compatibility, allowing for precise ignition adjustments.
• The kit includes a complete fuel delivery system with an external fuel pump and fuel pressure regulator.
• Supports a wide range of fuels, including gasoline, alcohol, and methanol.
• The dual 4-barrel throttle bodies deliver 1700 CFM of airflow.

SPECIFICATIONS:

• Maximum Horsepower: 625 HP
• Injection Style: Throttle body
• Timing Control Compatible: Yes
• Power Adder Compatible: No
• ECU Included: Yes
• Fuel Pump Included: Yes
• Metering Style: Speed density (Map-N)
• Airflow Rate: 1700 CFM
• Injector Size: 36 lbs./hr
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Disconnect the existing carburetor and fuel system.
• Install the dual 4-barrel throttle bodies onto the intake manifold.
• Mount the ECU and connect the provided wiring harness.
• Install the external fuel pump and fuel pressure regulator.
• Connect the MAP, IAT, and TPS sensors.
• Install the oxygen sensor in the exhaust system.
• Connect the power and ground wires.
• Fill the fuel system and check for leaks.
• Start the engine and allow the self-learning system to adjust.
• Make fine-tuning adjustments with the calibration module as required.

BENEFITS OF USING THE FITECH 2×4 625HP MATTE BLACK EFI W/ FORCE FUEL MINI SURGE TANK (35662):

• Improved fuel efficiency compared to traditional carburetors.
• Enhanced engine performance through precise fuel and timing control.
• Simplified installation with a complete kit.
• Self-learning capabilities for automatic adjustments.
• Versatile fuel compatibility.
• Reliable fuel delivery with the included fuel pump and regulator.

FEATURES:

• Eight 43mm venturis.
• Cast aluminum throttle body construction with a matte black finish.
• 36 lbs./hr fuel injectors.
• External fuel pump and fuel pressure regulator.
• MAP, IAT, and TPS sensors included.
• Oxygen sensor for closed-loop fuel control.
• Speed density (Map-N) metering style.
• Electronic timing control capability.
• Calibration module included for user adjustments.
