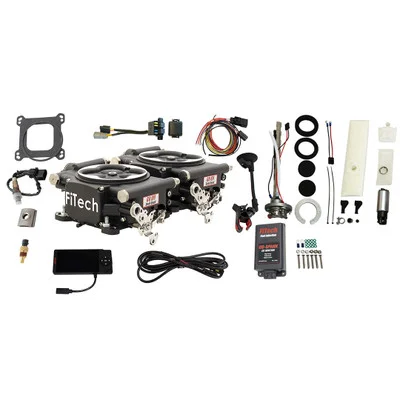

FiTech 2×4 625 HP Matte Black EFI w/ 255 LPH Pump & CDI Kit (96562)

Description

The FiTech 2×4 625 HP Matte Black EFI w/ 255 LPH Pump & CDI Kit (96562) is designed to replace traditional dual 4-barrel carburetors. This kit provides a modern fuel delivery solution for engines up to 625 horsepower, offering self-tuning capabilities and enhanced ignition performance. It includes options for in-tank or in-line fuel pump systems, making it adaptable to various vehicle setups.

KEY FEATURES AND BENEFITS:

• Replaces dual 4-barrel carburetors: Offers an EFI system for improved fuel delivery and efficiency.
• Supports up to 625 horsepower: Ideal for naturally aspirated applications.
• Self-tuning capabilities: Automatically adjusts fuel delivery for optimal performance.
• Includes timing control: Allows for precise engine management.
• Flexible fuel pump options: In-tank or in-line systems for varied installation needs.
• Fuel compatibility: Works with gasoline, alcohol, methanol, and flex fuel.
• Enhanced spark quality: Features the Go-Spark CDI ignition system for improved combustion.
• Comprehensive sensor package: Comes with oxygen (O2), MAP, IAT, and TPS sensors.
• Handheld display: A 4.5-inch display for monitoring and adjusting system parameters.

SPECIFICATIONS:

• Maximum Horsepower: 625 HP
• Injection Style: Throttle body
• Timing Control: Yes
• ECU Included: Yes
• Fuel Pump: In-tank or in-line options
• Metering Style: Speed density (MAP)
• Throttle Body Mounting Flange: Dual 4-barrel square bore
• Venturi Quantity: 8
• Venturi Diameter: 44.00mm
• Airflow Rate: 1700 cfm
• Injector Size: 36 lbs./hr.
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Remove the existing dual 4-barrel carburetors and clean the intake manifold surface.
• Installation: Mount the FiTech dual throttle bodies onto the intake manifold using the provided gaskets.
• Fuel System Setup: Install the chosen fuel pump system (in-tank or in-line) and connect the fuel lines, ensuring proper fuel pressure regulation.
• Wiring: Connect the wiring harness to the ECU and all sensors, following the manufacturer’s instructions for proper connections.
• Sensor Installation: Install the oxygen (O2), MAP, IAT, and TPS sensors in their designated locations.
• Ignition Setup: Connect the Go-Spark CDI ignition system to the distributor and ECU.
• Initial Setup: Power on the system and use the handheld display to input basic engine parameters.
• Self-Tuning: Allow the system to self-tune during initial operation, monitoring and adjusting as needed via the handheld controller.
• Fine-Tuning (Optional): If desired, use the handheld display to fine-tune fuel and timing parameters for optimal performance.

BENEFITS OF USING FITECH 2×4 625 HP MATTE BLACK EFI W/ 255 LPH PUMP & CDI KIT (96562):

• Improved fuel efficiency and performance compared to traditional carburetors.
• Elimination of common carburetor issues such as hard starts and inconsistent idle.
• Enhanced engine management through electronic control and self-tuning capabilities.
• Increased power output and throttle response with the Go-Spark CDI ignition.
• Adaptability to various fuel types, providing flexibility for different applications.
• Easier cold start functionality.

FEATURES:

• Dual 4-barrel throttle body design.
• Integrated ECU for electronic control.
• Handheld 4.5-inch display for system monitoring.
• Go-Spark CDI ignition for improved spark quality.
• Multiple fuel pump options (in-tank or in-line).
• Compatibility with various fuel types.
• Included sensors (O2, MAP, IAT, TPS).
• 1700 CFM airflow.
• 36 lbs./hr Injectors.
• Cast aluminum throttle body.
