Description
Chamfer Bits are used to route a decorative bevel profile. Festool chamfer bits use a special type of bearing and bearing mount that allows them to be easily used with orwithoutthe bearing.

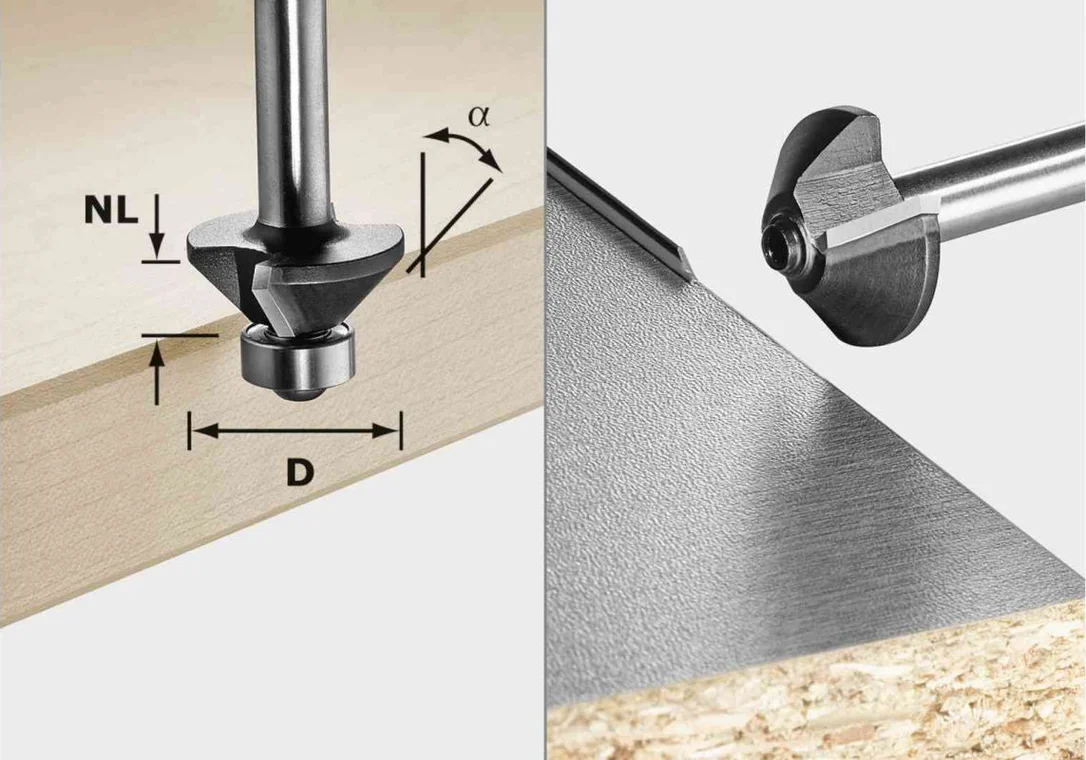

The chamfer angle is measured from the shank. A 30° chamfer bit has a 30° angle between the cutting edge and the shank. See the figure to the right.
Please note: These bits all have 8mm shanks.
| Cutting Diameter |
Cutting Length |
Chamfer Angle |
Shank | Overall Length |
Cutter Material |
HW # | Festool # |
|---|---|---|---|---|---|---|---|
| 26mm (~1-1/32″) |
7mm (~9/32″) |
45° | 8mm | 48mm (~1-7/8″) |
Carbide | 726051 | 499799 (S8 HW 45° D26-KL OFK) |
| 25mm (~1″) |
11mm (~7/16″) |
30° | 8mm | 50mm (~2″) |
Carbide | 726052 | 499800 (S8 HW 30° D25-KL OFK) |
| 27mm (~1-1/16″) |
8mm (~5/16″) |
45° | 8mm | 55mm (~2-1/8″) |
Carbide Insert | 726054 | 499807♦ (W S8 HW 45° D27 12×12 KL) |
| ♦This bit uses12mm x 12mm replaceable carbide inserts. |
