ESCO 10211 Giant Tire Bead Breaker Kit – 2 Gallon Hydraulic Pump
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

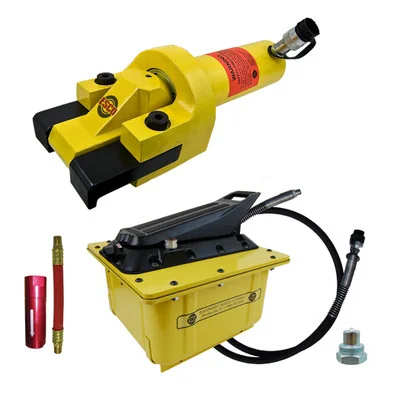

The ESCO Giant Tire Bead Breaker Kit includes the following items:
- 10103 | Giant Tire Bead Breaker Tool
- 10504 | 2 Gallon Turbo II Hydraulic Air Pump
- 10611 | 18′ Hydraulic Hose
- 10605 | Male Coupler with female threads
- 10601K | 6″ Whip-Hose, Air Reducer
Rim Applications:
- 5 Piece Rim
ESCO 10103 Giant Tire Bead Breaker – For 39″ Rims and Larger
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.
- Use on 5 piece rims 39”, 45”, 51”, 57”, and 63” wheel sizes.
- In some cases you must first use [Model #10105] or the [Model #10100] bead breaker to start the movement of the rim flange; the [Model #10103] can then be used.
- [Model #10504], air/hydraulic pump is recommended for operation.
- The [Model #10627] Kit converts the [Model #10103] into a [Model #10103L], which is capable of Working on 63” Rims.
Specifications:
- Weight | 54 lbs. (25 kg)
ESCO 10504 2 Gallon Turbo II Air Hydraulic Pump
- Rugged 2 gallon metal reservoir
- 10,000 psi hydraulic pressure
- Shipped with premium hydraulic oil
- Maximum oil capacity for any application
Specifications:
- Weight | 41 lbs. (19 kg)
ESCO 10611 Hydraulic Hose Kit
Hydraulic hose with swivel fitting, hose won’t kink. Reinforced with 2 layers of braided steel. Use with any 10,000 psi. pump, ram, or bead breaker.
Specifications:
- Length | 18′ (8′ Hose with 3/8″ 18 Male Ends)
- Weight | 9 lbs. (4 kg)
Attachments Include:
- Hose Only
ESCO 10605 Hydraulic Half Coupler Kit (Male to Female)
Male Coupler, Female Threads
Specifications:
- Thread Size | 3/8″ Female NPT
- PSI Rating | 10,000 PSI
ESCO 10601K Air Reducer with 6″ Whip-Hose
The ESCO Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, that is then used to power all ESCO Hydraulic Tools.
Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, & Keep ESCO Hydraulic Products in their PRIME.
- Maintain recommended working air pressure
- Easy installation & usage
- Model #10601K comes with Air Reducer & 6″ Whip-Hose (Model #10601H)
- Can be used in conjunction with multiple ESCO products
