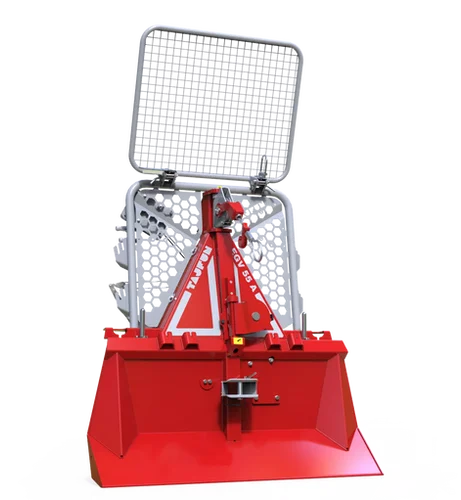

EGV 55 A New England Pine Co.

Description

Tajfun's EGV-series single drum winches can be operated with compact- to full-sized tractors. The EGV 55A can be operated with as little as 35 HP. The EGV 55A has mechanical controls (rope pull to freewheel the drum or set the brake) and a pulling force of 12,250 lbs.

Tajfun started developing and producing logging winches in 1979, and since then we have been constantly updating, upgrading, and developing new winches and parts.
Reliable and Easy Hydraulic (Type AHK winches) or Mechanical Control (Type A winches)
Simple and Fast Installation to Tractor’s Three Point Mounting System
Robotic Welded Stable and Robust Construction, Made of High-Quality Steel, Laser Cut and Powder Coated
Stable Drive with Double Bearing and Double Reduction Gear (Winches from 45 to 100 kN)
Highly Efficient Clutch Activation, Even with Mechanical Winches – Short Pull, Low Activation Power


Technical Data

Pulling Power
12,250 lbs
Brake Power
15,500 lbs
Gear Ratio
1:8.9
Rope Velocity (at 540 min-1)
21.25'' - 42.5''/s
Required Tractor Capacity
35 - 70 HP
Weight Without Wire Rope
761 lbs
Mounting
I, II
Width
60"
Length
23"
Transport Height
63"
Overall Height
91"
