Description
Details

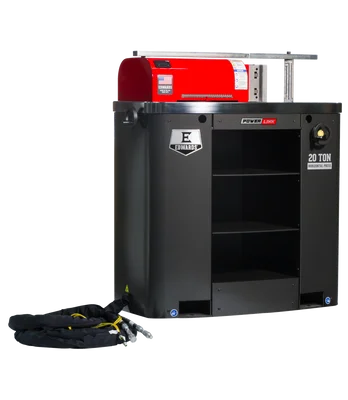

The 20 Ton Horizontal Press is the go-to tool to from, break and straighten mild steel. Designed for maximum flexibility to accept a variety (including custom) tooling. Repetitive processes are simple with the proximity sensor and digital readout. Must be run off an Edwards Ironworker with PowerLink ™ System or Portable Power Unit.
Features
- 20′ quick-connect hoses for simple “plug & play” operation
- Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling
- Digital encoder provides enhanced accuracy for precise repeatability
- Easy-to-use hand/jog controls with integrated E-Stop
- Robust construction with 2″ machine heavy-duty table
- Ships with a standard 6″ Brake with 4-Way Die able to create clips, brackets, hangers and more
- Storage shelves perfect for holding additional tooling
Specifications
| Stock Number | ED9-HAT6000 |
|---|---|
| Cylinder (In) | 2-1/4″ Ram |
| Model Number | HAT6000 |
| Overall Dimensions (L x W x H) (In.) | 30 x 48 x 60 |
| Product Dimensions (In.) | 26 x 43 x 49 |
| Prop 65 | Cancer and Reproductive Harm |
| Rating (Tons) | 20 |
| Stroke (In.) | 10 |
| Table Dimensions (In.) | 24 x 42 |
| Warranty | 1 Year |
| Gross Weight | 1500.0 |
| Net weight | 1500.0 |
