Description

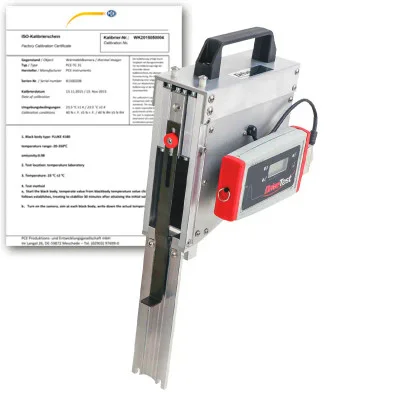

Drive Test Closing Force Measuring Device (FM208-AU-SY-02-200) is a specialized system for testing power-operated sliding roofs, automatic window lifters, and tailgates. Designed for precision, it ensures compliance with industry safety standards and is widely used in automotive manufacturing, testing, and regulatory inspections.
With its durable aluminum construction and low spring stiffness of 2 N/mm, this measuring device is ideal for testing soft-clamping elements in closing systems. The integrated PinchPilot software allows real-time evaluation, seamless data export, and compliance verification, making it an essential tool for development and production testing.
- Specifications and Dimensions
- Measuring range: 0 – 200 N
- Accuracy: +/– 3 N (0-100 N), +/– 3% (>100 N)
- Spring stiffness: 2 N/mm, +/– 10%
- Gap width: 30 mm / 1.1″
- Measurement area: 20 x 20 mm / 0.7 x 0.7″
- Force sensor: DMS bridge
- Dimensions: 220 x 80 x 250 mm / 8.6 x 3.1 x 9.8″
- Weight: 2.5 kg / 5.5 lb
- Key Features and Benefits
- Provides precise force measurement for sliding roofs, automatic windows, and tailgates
- Complies with 2000/4 EG, US Standard FMVSS 118, and ECE-R 21
- Low spring stiffness (2 N/mm) ensures accurate testing of soft elements
- Aluminum construction ensures long-lasting durability in tough environments
- Includes accessories such as spacers, monopod, and support blocks
