Description
For use with CSP Valves.
-

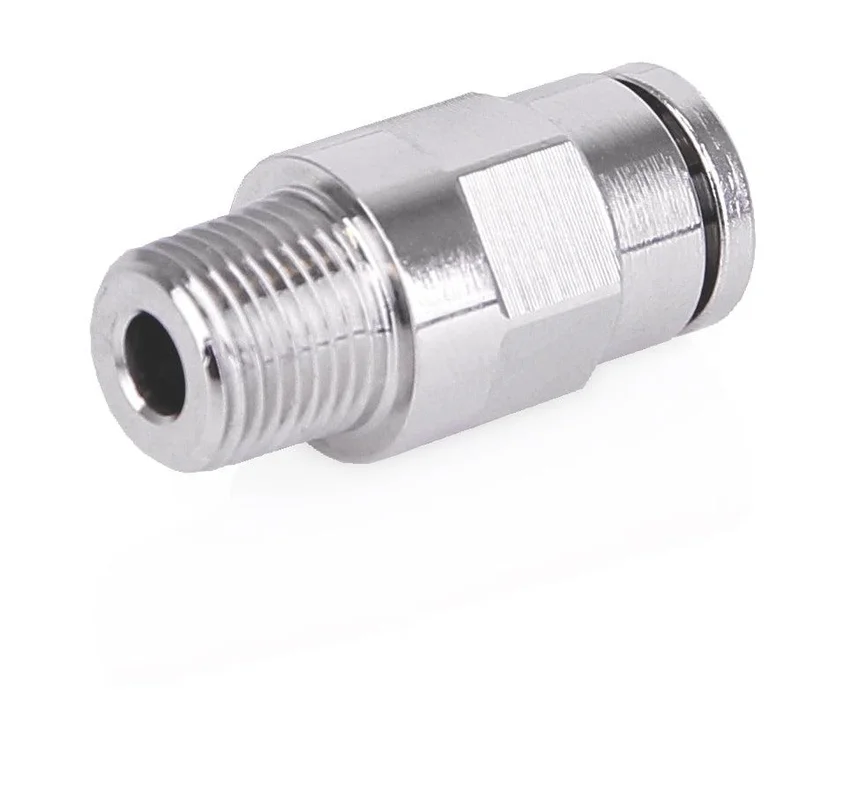

Push-to-Connect Fitting
-
1/4 inch hose stud x 1/8 inch NPT male straight, 2000 psi (13.79 MPa, 137.9 bar)
UPC Product: 00755652402329 Family Code: FAMCPT Unit of Measure: EA Height: .45 IN |1.143 CM Length: 1.5 IN |3.81 CM Width: .45 IN |1.143 CM Volume: 0 FT3 |0 M3 Chargeable Weight: .04 LBS | .02 KG
Technical Specifications
| Connection Type | Push-to-Connect, Threaded |
|---|---|
| Finish/Coating | Nickel |
| Material | Brass |
| Maximum Working Pressure (bar) | 138 |
| Maximum Working Pressure (kPa) | 13800 |
| Maximum Working Pressure (psi) | 2000 |
| Size A (in) | 1/4 |
| Size A (mm) | 6.35 |
| Size B (in) | 1/8 |
| Size B (mm) | 3.175 |
| System of Measurement | Imperial |
| Thread Type | NPT |
| Type | Stud |
