Description
For use with CSP Valves.
-

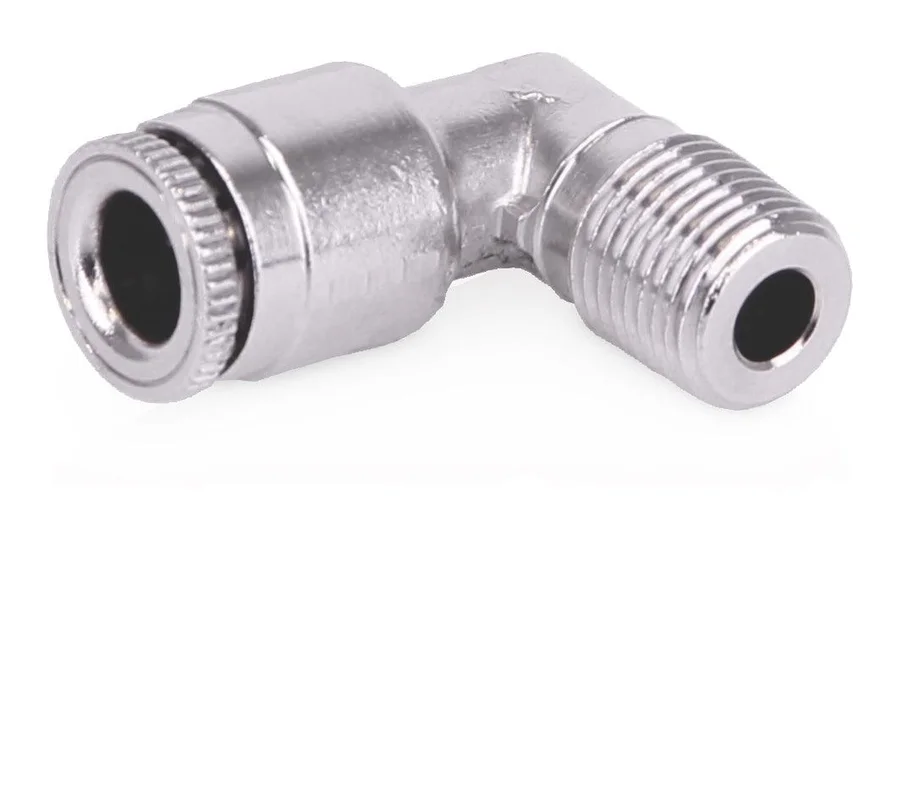

Push-to-Connect Fitting
-
1/4 inch OD tube x 1/8 inch NPT male 90°, 625 psi (4.31 MPa, 43.1 bar)
UPC Product: 00755652402343 Family Code: FAMCPT Unit of Measure: EA Height: .6 IN |1.524 CM Length: 3.1 IN |7.874 CM Width: 2.1 IN |5.334 CM Volume: .002 FT3 |0 M3 Chargeable Weight: .05 LBS | .02 KG
Technical Specifications
| Connection Type | Push-to-Connect, Threaded |
|---|---|
| Finish/Coating | Nickel |
| Material | Brass |
| Maximum Working Pressure (bar) | 43 |
| Maximum Working Pressure (kPa) | 4300 |
| Maximum Working Pressure (psi) | 625 |
| Size A (in) | 1/4 |
| Size A (mm) | 6.35 |
| Size B (in) | 1/8 |
| Size B (mm) | 3.175 |
| System of Measurement | Imperial |
| Thread Type | NPT |
| Type | Stud |
