Description
Product Overview

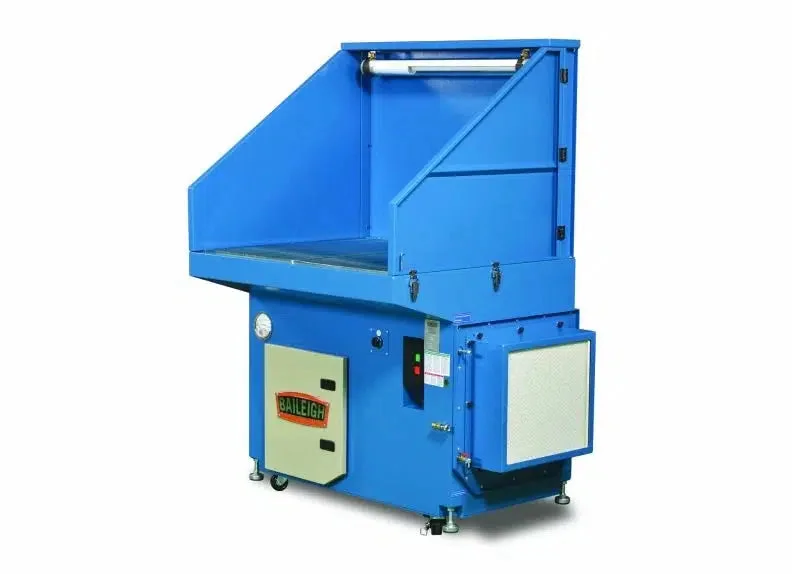

Downdraft tables are becoming more popular with all of the air quality regulations that are now in place. The Heavy Duty Downdraft Table DDTM-4840-HD is the perfect table for small shop that has a need for a production table. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air. The DDTM-4840-HD has a list of features that make it one of the best tables on the market.-Table Load Capacity – Maximum 1543lbs (700kgs) Evenly distributed over 80% – 100% of table surface. Concentrated Contact Surface Contact Weight 10% 192lbs (87kgs) 20% 384lbs (174kgs) 30% 575lbs (261kgs) 40% 767lbs (348kgs) 50% 959lbs (435kgs) 60% 1151lbs (522kgs) 70% 1343lbs (609kgs) 80% 1543lbs (700kgs).
Specifications:
- 48″ x 40″ Working area
- Air pulse cleaning
- 100% Tool free cleaning and filter maintenance/changes
- Fully Assembled – Simply uncrate, wire, and begin use
- Standard equipment included: HEPA filter, fire resistant cartridge filter, spark arresting metallic pre-filter, magnehelic gauge, hinged side walls w/ back wall, work light, auxiliary 110V and air tool outlets, 12” overhang, casters and leveling feet
- Safety – Under OSHA decibel limit (hearing protection not required)
- CSA listed
| Stock Number | BA9-1017589 |
|---|---|
| Filter Size (W x L x D) (In.) | Aluminum – 11.3″ x 23.8″ x 0.86″, Cartridge x 2 – Ø11.25″ x 13″L, HEPA – 18″ x 20″ x 5.9″ |
| Maximum CFM | 1350.0000 |
| Model Number | DDTM-4840-HD |
| Motor (HP) | 2HP, 230V,3ph |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Dust Collector |
| Weight (Lbs.) | 950 |
| Filter Type | 3 Stage Filter |
| Net Weight (Lbs.) | 1543 |
