Baileigh Industrial 1010424

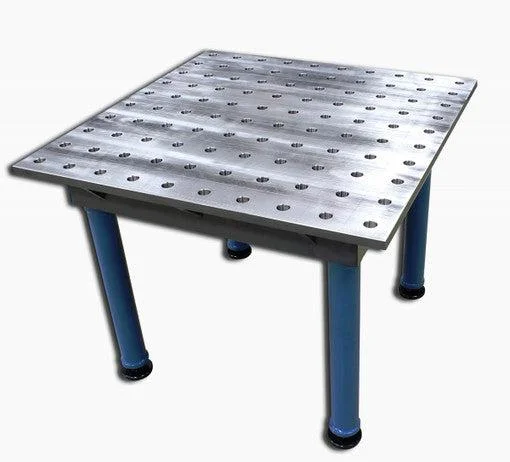

The WJT-3939 welding jig table is perfect for those small shops looking for a good economical fixture mounting system. It features one solid mounting surface that has a flatness of +/- .0025″ and a Brinell hardness rating of between 140 and 160. The best thing about the WJT-3939 metal welding table is that it accepts all of the same fixtures that the Baileigh heavy duty tables use, so when the time is right and the shop grows, you can step right up without having the large expense of swapping out fixtures.
Baileigh Industrial 1010424 Includes
- (1) Welding Jig Table
Baileigh Industrial 1010424 Features
- 39” x 39” metal welding table
- Made from Q345 Steel
- Brinell Hardness 140~160
- Single Mounting Surface
- Expandable
- 2 ton weight capacity
- Industry Standard 28mm Mounting holes
- 100mm hole spacing
- Etched Position Marks
- Includes table Oiler, Brush and cleaning stone
Baileigh Industrial 1010424 Specifications
| Working Table Size | 39″ x 39″ |
| Table Load Capacity | 2 Tons |
| Table Height | 33.5″ |
| Table Flatness | +/- .0025″ |
| Number of Mounting Surfaces | 1 |
| Mounting Hole Size | 28mm |
| Mounting Hole Spacing | 100 mm |
| Shipping Dimensions | 41″ x 41″ x 27″ |
