DESCRIPTION

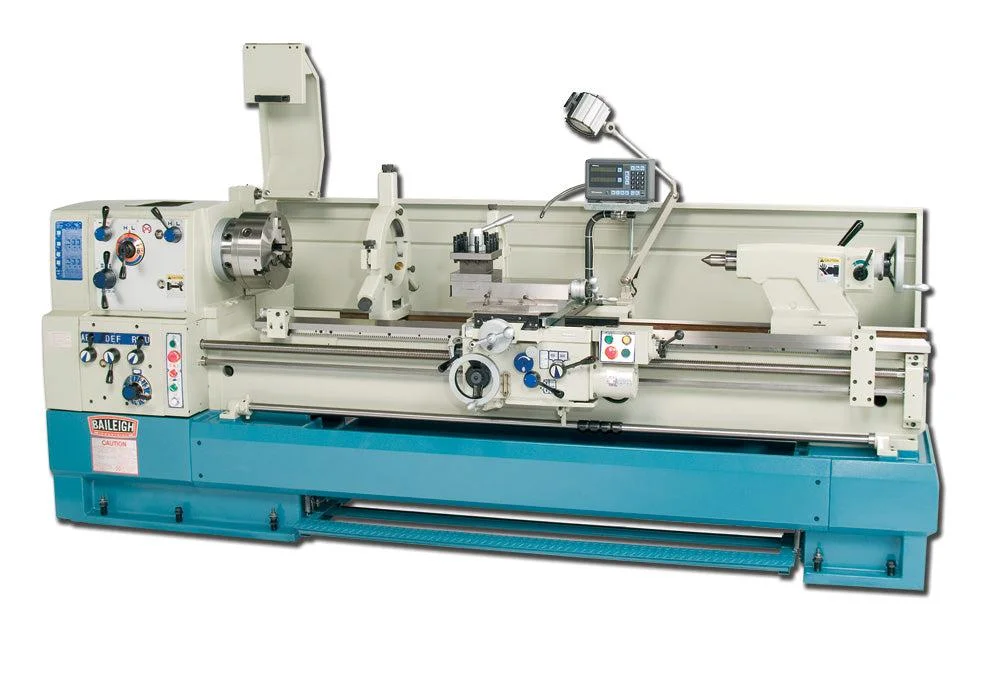

Everything about the PL-2080 industrial lathe is powerful, from its hardened slideways to the cast iron base. This engine lathe also includes a Mitutoyo® DRO.
- 12 speeds from 20 to 1,500 rpm.
- 15 hp motor runs on 220-volt 3-phase power.
- Capable of making metric or standard threads.
- Mitutoyo® 2-axis digital readout (DRO) system helps you obtain precise results.
- Polished ways with integrated wipers move as smoothly as the day they were made for years.
- Square indexing tool post.
- Lathe body is made from the best iron castings to ensure a rigid and stable platform.
- Cast pieces are fully integrated with the head stock, so every joint is tight.
- No assembly required.
- Comes standard with:
- 3-jaw universal chuck (12”).
- 10” back plate.
- Micrometer saddle stop.
- Steady rest and follow rest.
- Longitudinal rapid traverse.
- Headstock chuck guard with automatic safety switch.
- Coolant system with rear splash guard.
- Halogen work light.
- Emergency foot brake.
- Covered by a 1-year parts warranty.
- Replacement parts are in stock for fast shipping from our Wisconsin headquarters.
- We include lifetime technical support by phone from our team of reps with hands-on metalworking experience.
SPECIFICATIONS
| Item Number | PL-2080 |
|---|---|
| Speed | 20 – 1550 rpm |
| Spindle Bore | 3.125″ |
| Spindle Nose | D1-8″ |
| Included Accesories | Included Accesories |
| Threads Diametrical Qty Speed | 50 / 4–112 D.P. |
| Threads Imperial Qty Speed | 60 / 2–112 T.P.I. |
| Threads Metric Qty Speed | 60 / .2–14 mm pitch |
| Threads Module Qty Speed | 50 / .2-7 M.P. |
| Spindle Taper Sleeve | Morse #5 |
| Spindle Taper Nose | Morse #7 |
| Tailstock Quill Dia | 2.9375″ |
| Tailstock Quill Taper | Morse #5 |
| Tailstock Quill Travel | 6.3125″ |
| Compound Rest Travel | 10″ |
| Center Length | 80.313″ |
| Center Height | 10″ |
| Bed Width | 16.125″ |
| Longitudinal Feeds Metric Qty Speed | 50 / .037 – .983 mm / rev. |
| Main Motor | 15 hp |
| Longitudinal Feeds Imperial Qty Speed | 50 / .0014″ – .0387″ / rev. |
| Lead Screw Diameter | 1.5″ |
| Lead Screw Thread Pitch | 4 T.P.I. |
| Max. Swing In Gap Length | 7.0625″ |
| Max. Swing Over Bed | 20″ |
| Max. Swing Over Cross Slide | 13″ |
| Max. Swing In Gap Dia | 26.375″ |
| Cross Feeds Imperial Qty Speed | 50 / .0007″ – .01935″ / rev. |
| Cross Feeds Metric Qty Speed | 50 / .0185 – .52 mm / rev. |
| Cross Slide Travel | 12.5″ |
| Power | 220V / 3-phase |
| Shipping Weight | 6050lbs |
| Shipping Dimensions (Inches) | 141x53x66 |
* specifications subject to change without notice.
