Baileigh Industrial 1020692

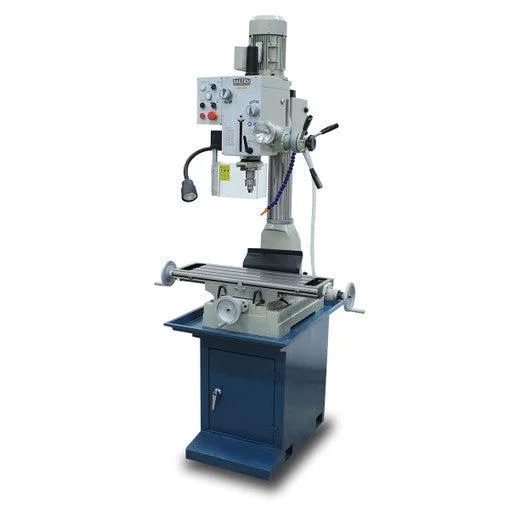

Don’t have the space for both a gear-driven drill press and a milling machine? The VMD-828G combines 2 functions in 1 space-efficient machine. This mill drill lets you set the right speed for a given application, providing greater control and extending tooling life.
Baileigh Industrial 1020692 Includes
- (1) Vertical Mill Drill
Baileigh Industrial 1020692 Features
- 2 hp motor runs on 110-volt power and will work almost any site.
- 1.5” maximum drilling capacity.
- Includes 29” x 8” milling-style table which expands the machine’s possible uses.
- Gear-driven head allows you to run tooling at the proper speed for each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
- Rigid base and very wide cast column adds to machine’s strength and eliminates flexing when milling or drilling at full capacity.
- Comes standard with coolant system, R8 spindle taper, and a flexible halogen light.
- Backed by a 1-year warranty
Baileigh Industrial 1020692 Specifications
| Spindle Speeds | 90, 210, 345, 670, 1180, 1970 RPM |
| Table Size | 28.75″ x 8.25″ |
| Motor | 2 HP |
| X Axis Travel | 19-1/2″ |
| Y Axis Travel | 9″ |
| Spindle Nose to Base | 16.14″ |
| Spindle Stroke | 4-3/4″ |
| Spindle Taper | R8 |
| T Slots | .550″ |
| Coolant Pump | 1/8 HP |
