Description

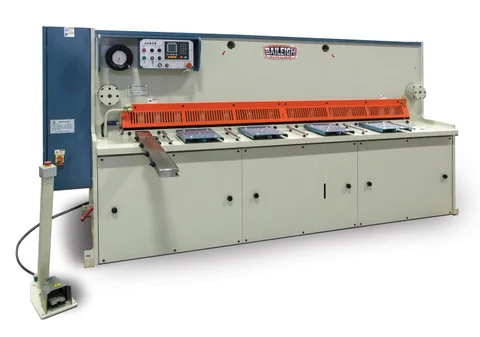

Baileigh 96″ Heavy Duty Hydraulic Shear 1/4″ 220V 3Phase (1007179) is engineered for high performance and precision in metal cutting. This hydraulic shear ensures efficient operation for demanding industrial tasks. The powerful 10 hp motor running on 220-volt 3-phase power provides consistent performance and reliability.
This heavy-duty hydraulic shear features a fully welded steel frame to eliminate vibrations and ensure accurate cuts. The programmable backgauge offers precise repeatability, while the adjustable blade gap and rake angle minimize burrs and reduce hydraulic strain.
- Specifications and Dimensions
- Length: 119 in.
- Width: 48 in.
- Height: 65 in.
- Net Weight: 4700 lbs
- Shear Length: 96 in.
- Max Material Thickness (Mild Steel): 1/4 in.
- Max Material Thickness (Stainless Steel): .177 in.
- Blade Rake Angle: 1.5 Degrees
- Blade Clearance: Manual Hand Wheel
- Back Gauge Length: 23.62 in.
- Motor: 10 hp
- Strokes Per Minute: 14 – 45
- Power: 220V / 3-phase
- Key Features and Benefits
- Fully welded steel frame for durability and precision
- Programmable backgauge for accurate repeatability
- Adjustable blade gap and rake angle for clean cuts
- High-quality components for reliable performance
- Squaring arms and roller infeed tables for easy material handling
- Shadow line positioner for accurate material placement
- Hydraulic system located in front for easy maintenance
- 1-year parts warranty
- Lifetime technical support by phone
