Baileigh 78″ 50 Ton Hydraulic Press Brake 220V 3Phase 2 Axis Programmable (1010285)

Description

Baileigh 78″ 50 Ton Hydraulic Press Brake 220V 3Phase 2 Axis Programmable (1010285) is built for precision and durability in metalworking. Delivering 50 tons of pressure over a 78-inch length, this hydraulic press brake is perfect for bending 6-foot pieces of mild steel with accuracy and efficiency. The 220-volt 3-phase power ensures consistent performance for industrial applications.

This hydraulic press brake features a fully programmable 2-axis control system, allowing you to set the bend depth and back gauge distance for efficient production.

• Specifications and Dimensions
  • Length: 117 in.
  • Width: 61 in.
  • Height: 85 in.
  • Net Weight: 7700 lbs
  • Table Length: 78.7 in.
  • Maximum Pressure: 50 Ton
  • Throat Depth: 7.87 in.
  • Stroke Distance: 3.93 in.
  • Table Width: 5.5 in.
  • Voltage: 220V / 3-phase



• Key Features and Benefits
  • 50 tons of pressure over 78-inch length
  • Fully programmable 2-axis control system
  • Industrial-grade hydraulic system with Vickers/Eaton® pump
  • Torque tube and chain drive linkage for synchronized cylinders

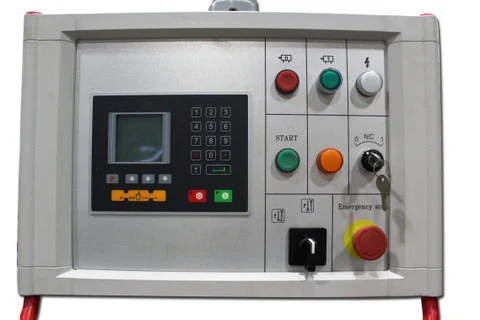

  • Simple controller storing up to 40 programs with 25 bends each
  • Fully welded steel framework for structural strength
  • Includes multi-Vee bottom die and gooseneck punches
  • Safety light curtains for operator protection
  • 1-year parts warranty and lifetime technical support
