Description

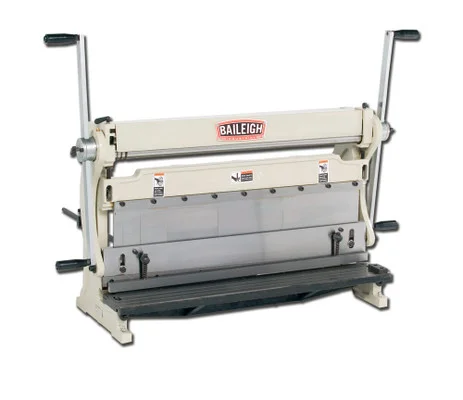

Baileigh 3-in-1 Combination Shear Brake and Roll (1006958) is the perfect solution for small shops with limited space. This versatile machine combines a shear, press brake, and roll into one compact unit, making it ideal for low production runs and one-off projects.
The Baileigh 3-in-1 Shear Brake Roll offers a 30” working width and can handle up to 20 gauge mild steel and 16 gauge aluminum. The slip roll features 3 wire grooves and can form rolls down to 1.54” in diameter. The press brake can bend up to 90° with adjustable camber for consistent pressure.
- Specifications and Dimensions
- Item Number: SBR-3020
- Working Width: 30″
- Maximum Capacity: 20 gauge mild steel, 16 gauge aluminum
- Slip Roll Diameter: 1.54”
- Overall Dimensions: 40” x 18” x 28”
- Net Weight: 340 lbs
- Key Features and Benefits
- 3-in-1 design saves space
- 30” working width for shear, press brake, and roll
- Slip roll with 3 wire grooves
- Vertical press brake bends up to 90°
- Adjustable camber for consistent bends
- Spring-loaded shear hold-down minimizes burrs
- Hardened and reversible blades for longevity
- Manual back gauge for repeatable parts
- Heavy-duty steel construction for durability
- 1-year parts warranty and lifetime technical support
