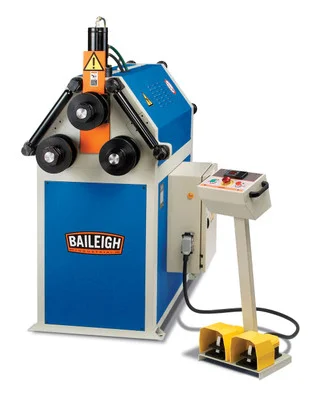

Baileigh 220V 3Phase Roll Bender with Hydraulic Top Roll Movement (1006836) offers superior bending capabilities for a variety of materials. This programmable ring roller can operate horizontally or vertically to handle large radii and smaller diameters with ease.
This 1006836 industrial ring roller runs on 220-volt 3-phase power and features a powerful 5 HP motor driving three rolls with a direct-drive transmission. The hydraulic cylinder system allows for seamless adjustment of the top forming roll, controlled via a programmable control station with a digital readout, ensuring repeatable precision for production runs.
- Specifications and Dimensions
- Length: 60 in.
- Width: 44 in.
- Height: 77 in.
- Net Weight: 1320 lbs
- Power: 220V / 3-phase
- Roll Adjustment: Hydraulic
- Pipe Capacity: 2.5″ (sch. 40) / Min. Dia.: 40″
- Round Tube Capacity: 2-3/4″ (.095″) / Min. Dia.: 72″
- Square Tube Capacity: 2.75″ (.083″) / Min. Dia.: 54″
- Solid Round Capacity: 2″ / Min. Dia. 28″
- Angle Iron Capacity: 3″ (.250″)/ Min. Dia.: 36″
- Shaft Diameter: 2.165″
- Shaft Center Distance Lower Rolls: 11.875″
- Lower Roll Dia.: 6.693″
- Pinch: Single
- Key Features and Benefits
- Hydraulic cylinder system for seamless top roll adjustment
- Programmable control station with digital readout for precision
- Heavy steel plate frame for durability and minimal flex
- Rugged construction ensures accuracy at full capacity
- Comes standard with segment rolls and lateral roll guides
- Lifetime technical support from Baileigh’s experienced team
