Description

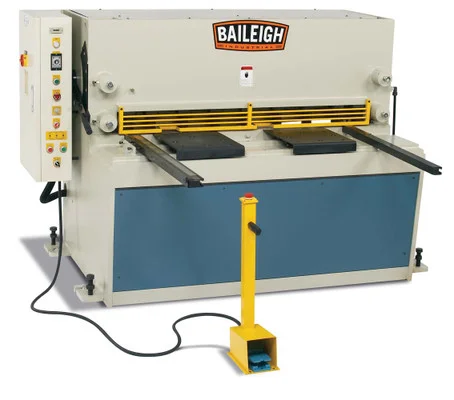

Baileigh 220V 3Phase Heavy Duty Hydraulic Sheet Metal Shear (1007087) ensures longevity and precision in high production environments. With a maximum capacity of 1/4″ mild steel and a 52″ shearing length, this shear is designed for efficiency and accuracy.
This 1007087 220V hydraulic shear features a welded steel frame and an industrial-grade hydraulic system, ensuring durability and reliability. The adjustable blade gap and rake angle improve cut quality and reduce burr, making it ideal for various materials.
- Specifications and Dimensions
- Length: 88 in.
- Width: 54 in.
- Height: 66 in.
- Net Weight: 5820 lbs
- Motor: 15 HP
- Blade Rake Angle: .5 to 2.0 Degrees
- Back Gauge Length: 23.62 in.
- Shear Length: 52 in.
- Thickness (SS): 1/4″ (7 ga.)
- Strokes Per Minute: 16 – 24
- Front Gauge Length: 39.37 in.
- Blade Angle: 1/2° – 2° Adjustable
- Power: 220V / 3-phase
- Key Features and Benefits
- Welded steel frame for enhanced durability and longevity
- 15 hp motor running on 220-volt 3-phase power
- Adjustable blade gap and rake angle for precise cuts
- Industrial-grade hydraulic system
- Easy operation with foot pedal control
- Hydraulic hold-downs for secure material clamping
- High carbon chromium blades, resharpenable for cost efficiency
- Shadow light for precise material placement
- Lifetime technical support by phone
