Description

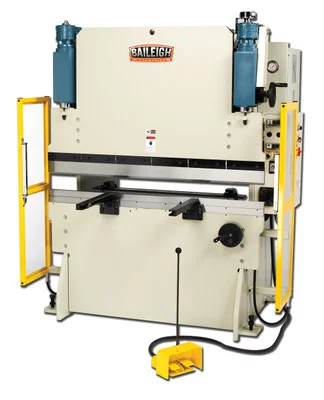

Baileigh 220V 3Phase 33 Ton Hydraulic Press Brake 61″ Width .078″ Thickness (1000803) is designed for smooth production and precise bending. This machine offers simplicity and reliability, making it easy to learn and operate in just 5 minutes.
Built with a robust steel frame, this 1000803 industrial press brake delivers up to 33 tons of pressure, allowing you to bend sheet metal up to 61” wide with a maximum thickness of .078”. Its user-friendly features and powerful hydraulic system ensure consistent, high-quality results.
- Specifications and Dimensions
- Length: 83 in.
- Width: 59 in.
- Height: 94 in.
- Net Weight: 5450 lbs
- Gauge Length: 17201
- Return Speed: 2.36″ / sec.
- Maximum Pressure: 33 tons
- Oil Capacity: 24 gal
- Approach Speed: 3.14″ / sec.
- Back Gauge Motor: 1/2 hp
- Bending Speed: .275″ / sec.
- Main Motor: 3 hp
- Distance Between Housings: 49.21″
- Distance From Table To Ram: 9.84″
- Power: 220V / 3-phase
- Key Features and Benefits
- Produces up to 33 tons of pressure for precise bending
- Handles sheet metal up to 61” wide and .078” thick
- 220V 3-phase power with a 3 hp motor
- Operates in jog, manual, and automatic modes for versatility
- Digital readout (DRO) for accurate stroke positioning
- Motorized back gauge with solid ball screw trolley mechanism
- Includes a set of hardened single-Vee American tooling
- Comes with front material rests for added support
