Description

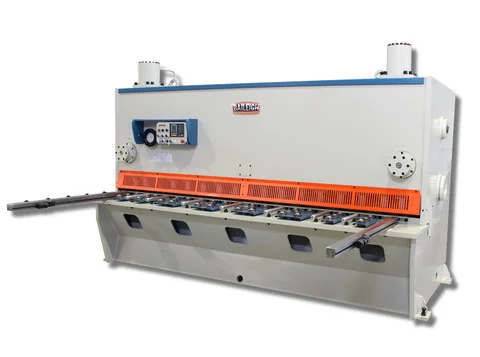

Baileigh 220V 3Phase 30hp Heavy Duty Hydraulic Shear with NC Controller (1007085) is designed for precision and durability, making it perfect for high-volume metal cutting tasks. With its robust construction and advanced NC controller, this hydraulic shear ensures consistent, high-quality performance for demanding production schedules.
This 220V hydraulic shear features a 120” length capacity, allowing it to handle up to 10-foot sheets of ½”-thick mild steel. The powerful 30 hp motor operates on 220-volt 3-phase power, providing the strength needed for efficient and precise cuts.
- Specifications and Dimensions
- Length: 157 in.
- Width: 70 in.
- Height: 85 in.
- Net Weight: 23,750 lbs
- Maximum Mild Steel Thickness: .50″
- Minimum Material Thickness: 18ga
- Blade Rake Angle: .5 to 1.5 Degrees
- Blade Clearance: Manual Hand Wheel
- Back Gauge Length: 25.6″ Motorized
- Shear Length: 120″
- Motor: 30 hp
- Strokes Per Minute: 9
- Power: 220V 3-Phase / 60 Hertz
- Squaring Arm Length: 48″ (Can be used on right or left side, includes 4 bump stops)
- Key Features and Benefits
- 30 hp motor for powerful cutting performance
- 120” length capacity for handling large sheets
- Programmable NC backgauge for precise cutting
- Adjustable blade gap and rake angle for versatility
- Durable construction with top-quality components
- Hydraulics located in the front for easy maintenance
- Shadow line positioner for accurate material placement
- Fully welded steel plate frame for stability
- 1-year parts warranty with lifetime technical support
