Description

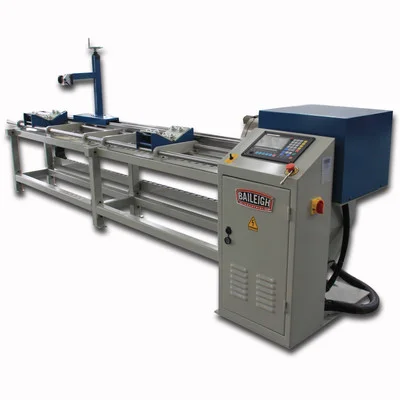

Baileigh 220V 1Phase Plasma Cutting Table for Tube and Pipe 3 Meter Length (1013218) offers precision and efficiency in notching and profiling tubes and pipes. This CNC pipe-cutting solution can rapidly finish 10-foot material. The PTP-1110’s user-friendly setup and programming make it a valuable addition to any workflow.
This plasma cutting table is designed to handle a wide range of cuts, including straight, miter, saddle, center offset, multiple intersection, and gusset slots. The included software allows operators to take design-software-generated G code directly to the controller.
- Specifications and Dimensions
- Length: 168 in.
- Width: 39 in.
- Height: 60 in.
- Net Weight: 1700 lbs
- Key Features and Benefits
- Compact footprint: 2 feet wide by 13 feet long
- Handles 10-foot material efficiently
- Effective X-Y axis cutting with included software
- Stepper motors for smooth carriage motion
- Variable-angle, manual height control for plasma torches
- Handles pipe with an OD range of 2″ to 11.5″
- Perfect for a wide range of cuts: straight, miter, saddle, and more
- Reliable performance for improved productivity and quality
- 1-year parts warranty and lifetime technical support
