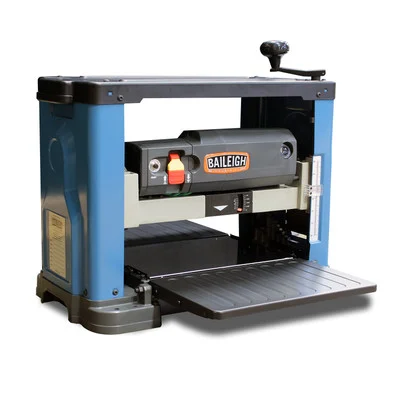

Baileigh 110V 13in Benchtop Planer w/ Tungsten Carbide Insert Cutting Head (1020164)

Description

Baileigh 110V 13in Benchtop Planer w/ Tungsten Carbide Insert Cutting Head (1020164) is perfect for hobbyists and small shops. This compact planer is easily portable yet delivers the performance of a much larger unit. Powered by a 2 hp, 15 AMP motor, it turns the cutter head at 10,000 rpm.

The tungsten carbide planer features a spiral-style cutter head with 26 two-sided carbide inserts, providing a maximum cutting height of 6 inches and a cut depth of up to ⅛ inch. The large table, expandable to 13” x 27 ½”, keeps your boards flat and straight. The planer includes 2½” and 4” dust ports for easy dust collection.

• Specifications and Dimensions
  • Length: 26 in.
  • Width: 17 in.
  • Height: 22 in.
  • Net Weight: 80 lbs
  • Cutterhead Diameter: 2 in.
  • Dust Port Outside Diameter: 4 in.
  • Model Number: IP-1306
  • Motor Amps: 15
  • Motor Power: 2 HP
  • Motor Voltage: 110V
  • Number of Knives: 26
  • Prewired Voltage: 110V
  • Table Height from Floor: Manual



• Key Features and Benefits
  • 2 hp, 15 AMP motor with 10,000 rpm cutter head
  • Spiral-style cutter head with 26 carbide inserts
  • 6” maximum cutting height and up to ⅛” cut depth
  • Expandable table to 13” x 27 ½” for stability
  • Sliding quick set depth stop for easy adjustments
  • 2½” and 4” dust ports for effective dust collection
  • Compact and portable design for easy transport
  • 1-year parts warranty and lifetime technical support
