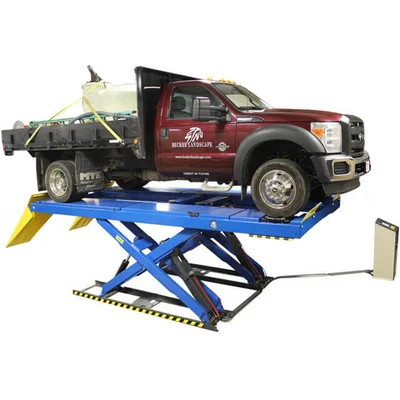

The Atlas® PX-16A (16,000 lb. capacity) scissor alignment lift is the perfect choice for those service shops that need a space saving (narrow width) alignment lift to accommodate most all passenger cars up to heavy-duty long wheel base trucks and vans.
The Atlas® PX-16A allows the operator to perform 4-wheel alignments for vehicles with wheel base lengths from 96 inches to 184 inches, and an extra 18″ or 24″ with the optional set of front extensions.
The Atlas® PX-16A includes a set of turntables and the runway jack rail is designed to accommodate optional rolling jacks. The lift is equipped with a semi enclosed air line kit routing system to accommodate the optional airline kit. This air line kit will provide air to the rolling jacks and prevent shop air hoses from cluttering the floor.
This is perfect alignment lift for those service departments that do alignments on a variety of vehicles that may include a Smart Car® all the way to an F-450 dual wheel truck.
Features:
- 16,000 lb. Capacity
- Wheels Free System
- Heavy Duty Construction and super- balanced lift for wheel alignment
- Can be surfaced mounted or flush mounted
- Recessed Turntables
- Very precise platform leveling accuracy
- Mechanical safety lock with air operated engagement and release
- Emergency manual pump for lowering
- Extra Long Slip Plates allow for 4-wheel aligning of wheelbases from 184″ to 96″
- Shipping Dimensions: (2 boxes) 198″ x 53″ x 29 1/2″
- Shipping Weight: 5,500 lbs
Includes
- Overload valve
- Air Line Kit Routing Sytem
- Lowering speed control valve
- Recessed turntables
- Mounting Hardware
Specifications:
| Capacity | 16,000 lbs |
| Lifting Height | 71 1/2″ (5′ 11 1/2″) |
| Clearance Under Runway | 63 3/4″ (5′ 3 3/4″) |
| Overall Width | 94″ (7′ 10″) |
| Overall Length w/Approach Ramps | 271″ (22′ 7″) 294″ (24′ 6″) w/extensions |
| Overall Length w/o Approach Ramps | 206 1/2″ (17′ 2 1/2″) 229 1/2″ (19′ 1 1/2″) w/extensions |
| Approach Ramp Length | 66″ (5′ 6″) |
| 4-Wheel Alignment Wheelbase | 204″ (17′) Max. w/extensions 184″ (15′ 4″) Max. w/o extensions 96″ (8′) Min. |
| 2-Wheel Alignment Wheelbase | 210″ (17′ 6″) Max. w/extensions 188 1/2″ (15′ 8 1/2″) Max. w/o extensions |
| Runway Width | 23 3/4″ (1′ 11 3/4″) |
| Lowered Height | 13 1/4″ |
| Locking Positions | 18 |
| Width Between Runways | 44 7/8″ (3′ 8 7/8″) |
| Width Between Runways Rails | 41 3/8″ (3′ 5 3/8″) |
| Motor | 4 HP 220 volt +/- 5% (209-231volts) 1 phase 30 amp breaker is required. |
| Oil Requirement | 3-5 Gallons AW32/AW46 |
| Weight | 6,200 lbs |
