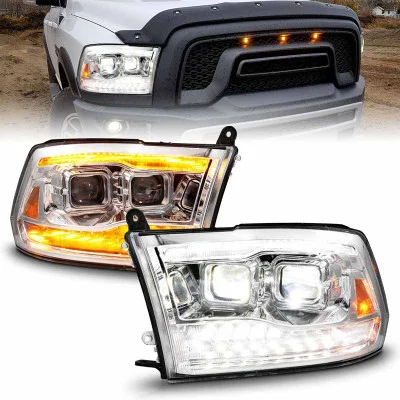

Anzo USA 09-18 RAM 1500/2500/3500 Chrome Plank Headlights (ANZ111596)

Description

The Anzo USA 09-18 RAM 1500/2500/3500 Chrome Plank Headlights (ANZ111596) are a comprehensive lighting upgrade for your truck. Designed as a direct-fit replacement for the factory headlights, this full LED projector set offers enhanced functionality and a modern aesthetic. The headlights are engineered with a durable chrome housing and a clear lens, ensuring both long-term performance and a clean, updated look. They feature integrated LED light sources for both low and high beams, delivering improved brightness and a more focused light pattern compared to traditional halogen bulbs.

KEY FEATURES AND BENEFITS:

• Improved Visibility: The full LED projector system produces brighter and more focused illumination, significantly enhancing nighttime driving performance.
• Enhanced Safety: Integrated LED plank-style DRLs and sequential turn signals make your truck more visible to other drivers while providing a clear indication of your driving intentions.
• Modern Appearance: Chrome housing with a clear lens and plank-style design provides a stylish, updated look.
• Easy Installation: Utilizes existing factory mounting points and a straightforward wiring process, requiring no major modifications.
• Street Legal: Compliant with SAE and D.O.T. standards for legal use on public roads.

SPECIFICATIONS:

• Part Number: 111596
• UPC: 846959055681
• Housing Color: Chrome
• Lens Color: Clear
• Light Source: Full LED (Low Beam, High Beam, DRL, Sequential Turn Signal)
• Weight: 24.51 lbs
• Package Dimensions: W17.5000” x H24.0000” x L23.0000”
• Included: Two headlight assemblies (one pair), wiring harnesses
• Compliance: SAE and D.O.T. Approved

HOW TO USE:

• Preparation: Remove the factory headlight assembly by loosening the screws (e.g., 12mm) and Phillips screw securing it in place.
• Unplug Harness: Disconnect the original headlight wire harness and remove the 3157 and 194 bulbs with their sockets.
• Wiring: On the new Anzo headlight, splice the loose red (+) wire to the tan wire and the black (-) wire to the black wire on the vehicle’s 194 bulb harness to power the DRLs/halos.
• Connect: Attach the Anzo headlight’s 3157 wedge connector to the vehicle’s 3157 harness, aligning black wires. Plug the 194 bulb harness into the supplied Anzo socket.
• Installation: Insert the new headlight into the mounting location and secure with factory screws and rubber guards.
• Testing: Power on the headlights and test all functions (low beams, high beams, DRLs, sequential turn signals) before completing installation.

BENEFITS OF USING ANZO USA 09-18 RAM 1500/2500/3500 CHROME PLANK HEADLIGHTS (ANZ111596):

• Improved Visibility: Provides brighter and sharper illumination compared to factory halogen units.
• Enhanced Safety: Bright DRLs and sequential turn signals increase awareness and communication with other drivers.
• Modern Styling: Chrome finish and dynamic plank design refresh the appearance of your RAM truck.
• Easy Upgrade: Direct-fit design allows for straightforward installation without advanced tools or modifications.
• Durable Construction: Built to high-quality standards with corrosion resistance and reliability for long-term use.

FEATURES:

• Fully SAE and D.O.T. compliant for street use.
• Dual projector design for independent high and low beams.
• Dynamic initiation sequence upon startup.
• Switchback plank light bar serving as DRL and amber turn signal.
• Sequential amber turn signal functionality for a premium look.
• Corrosion-resistant construction, tested in Thermo-Hygrometer chambers for durability.
• Precision CAD/CAM engineering ensures proper fit and finish.
• Direct plug-and-play installation using factory mounting points.
