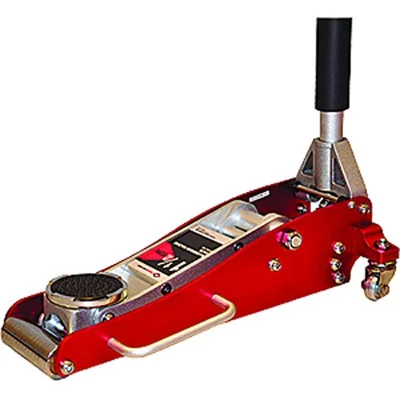

American Forge & Foundry 1.5 Ton Aluminum Racing Jack (206)

Description

The American Forge & Foundry 1.5 Ton Aluminum Racing Jack (206) is an essential tool for automotive professionals and enthusiasts seeking efficient and reliable vehicle elevation. Engineered with a lightweight aluminum frame, this jack offers exceptional portability without compromising on strength or performance. Its intelligent design focuses on delivering quick, stable lifts for a wide array of vehicles, from low-profile cars to standard automobiles. The integrated safety features ensure secure operation, making it a valuable addition to any garage or workshop environment.

KEY FEATURES AND BENEFITS:

• Faster Lifts: The double pump design significantly reduces the number of strokes required to reach the desired height, saving time and effort during vehicle servicing.
• Enhanced Vehicle Protection: A padded saddle helps safeguard the vehicle’s frame and underside from scratches and damage during lifting.
• Effortless Maneuverability: Front rollers and a side handle allow for easy positioning and transportation of the jack around the workspace.
• User Comfort: A padded, two-piece handle provides a comfortable grip and can be conveniently stored.
• Portable Performance: Its lightweight aluminum construction makes it easy to move and transport, combining robust lifting power with excellent portability.

SPECIFICATIONS:

• Model: 206
• Capacity: 1.5 tons
• Low Height: 3.25 inches
• High Height: 15 inches
• Chassis Length: 20 inches
• Overall Width (front): 6 inches
• Overall Width (rear): 10 inches
• Ship Weight: 30 lbs

HOW TO USE:

1. Prepare the Vehicle: Park the vehicle on a flat, stable, and level surface. Engage the parking brake and place wheel chocks on the wheels that will remain on the ground.
2. Position the Jack: Locate a suitable jacking point on the vehicle’s frame or designated lift point, as specified in the vehicle’s owner’s manual. Slide the jack’s saddle directly under this point.
3. Lift the Vehicle: Insert the handle into the jack’s pump mechanism. Pump the handle steadily to raise the vehicle to the desired height. Ensure the jack remains stable during the lifting process.
4. Place Jack Stands: Once the vehicle is at the desired height, immediately place appropriately rated jack stands under secure support points on the vehicle. Never work under a vehicle supported only by a floor jack.
5. Lower onto Jack Stands: Slowly and carefully turn the release valve on the jack to lower the vehicle onto the jack stands. Ensure the vehicle is resting securely on the stands before proceeding with any work.
6. Remove Jack: Once the vehicle is safely supported by jack stands, you can remove the floor jack.
7. Lower Vehicle (after work): After completing your work, place the jack back under the jacking point, slightly raise the vehicle to remove the jack stands, then slowly lower the vehicle completely to the ground by opening the release valve.

BENEFITS OF USING AMERICAN FORGE & FOUNDRY 1.5 TON ALUMINUM RACING JACK (206):

• Provides rapid vehicle elevation, saving time in busy workshop environments.
• Offers a secure and stable lifting platform for various automotive maintenance tasks.
• Reduces physical strain due to its lightweight construction and efficient pumping mechanism.
• Protects the vehicle’s undercarriage from potential damage during lifts.
• Easily maneuvered and stored, making it suitable for both professional garages and home use with limited space.
• Designed for a long service life, providing a reliable tool for years of consistent use.

FEATURES:

• Controlled lowering with a precision release valve.
• Smooth and stable operation with universal joint technology.
• Built-in safety valve to prevent overloading.
• Durable UV powder-coated frame finish for lasting protection.
• High-strength steel yoke assembly for reliable performance.
• Polished plunger pistons for increased seal longevity.
• Wiper seals to protect the internal hydraulic system.
• Centered pump plunger design extends tool lifespan.
• Specifically engineered release valve porting for slow, precise descent.
