American Autowire 67 Camaro Rally Sport Headlight Kit (AAW500773)

Description

The American Autowire 67 Camaro Rally Sport Headlight Kit (AAW500773) is a specialized add-on wiring harness designed to provide a complete and reliable electrical solution for the pop-up headlight system of a 1967 Chevrolet Camaro with the Rally Sport option. This kit is the definitive choice for those who have upgraded their vehicle with the American Autowire Classic Update wiring harness (Part Number 500661). It is engineered to seamlessly integrate with that system, ensuring the iconic hideaway headlights function as intended with modern electrical performance and safety.

KEY FEATURES AND BENEFITS:

• Complete Wiring Solution: Provides all the necessary wiring for the electric headlight motors, limit switches, and relay panel, ensuring every component of the Rally Sport headlight system is properly connected.
• Precise Fitment: Designed specifically for the 1967 Camaro Rally Sport, this harness offers a precise fit and is engineered to work without modification when used with the Classic Update wiring kit.
• Enhances Functionality: Ensures the headlight doors open and close reliably and consistently every time with a clean and dedicated power and signal path.
• Easy Integration: Acts as a straightforward add-on to the American Autowire Classic Update wiring kit, enabling professional installation without extensive electrical knowledge.
• Diode Jumper Harness Included: Comes with a specific diode jumper harness for the ignition and headlight switches, which is critical for the proper and safe operation of the headlight door mechanism.

SPECIFICATIONS:

• Product Type: Wiring Harness Add-on
• Vehicle Application: 1967 Chevrolet Camaro Rally Sport (RS)
• Compatibility: Exclusively for use with American Autowire Classic Update kit (Part Number 500661)

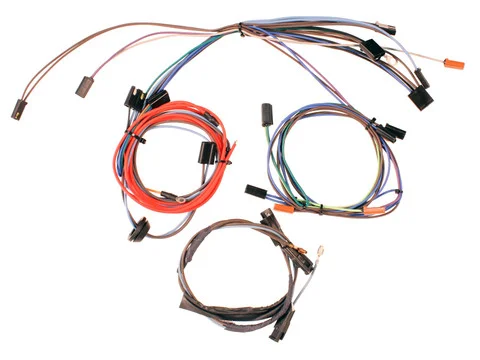

• Included in Kit:
  • Harness for electric headlight motors
  • Harness for limit switches
  • Harness for relay panel
  • Ignition and headlight switch diode jumper harness

HOW TO USE:

• Safety First: Disconnect the vehicle’s battery before beginning any work on the electrical system.
• Identify Components: Locate the electric motors, limit switches, and relay panel in the left front fender of your 1967 Camaro RS.
• Connect Harnesses: Plug the wiring harnesses from the AAW500773 kit into the appropriate components. Each harness is designed to connect to specific terminals and connectors.
• Integrate Jumper Harness: Install the ignition and headlight switch diode jumper harness into the Classic Update kit at the correct terminals as instructed.
• Secure Wiring: Use zip ties or clips to secure the harnesses, keeping them clear of moving parts or hot surfaces.
• Test System: Reconnect the battery and test the operation of the pop-up headlights by turning the ignition and headlight switches on and off to ensure they open and close correctly.

BENEFITS OF USING AMERICAN AUTOWIRE 67 CAMARO RALLY SPORT HEADLIGHT KIT (AAW500773):

• Ensures the intricate headlight door system of your 1967 Camaro RS operates with modern reliability and precision.
• Eliminates the need to splice into existing wiring or create custom circuits, preventing potential electrical failures.
• Exclusive compatibility with the Classic Update harness ensures seamless integration and professional results.
• Simplifies the electrical portion of your restoration project while enhancing performance and safety.
• Provides peace of mind with a product engineered for precise compatibility and durability.

FEATURES:

• Tailored for the 1967 Camaro Rally Sport’s unique hideaway headlight system.
• Dedicated harness supplied for the headlight door relay panel.
• Includes a diode jumper harness for smooth switch integration.
• Complements and integrates directly with the 500661 Classic Update kit.
• Provides an organized, professional, and clutter-free wiring setup.
• Direct connections designed for all relevant headlight door components.
