American Autowire 1980-86 Ford Truck & Bronco Update Kit (AAW510724)

Description

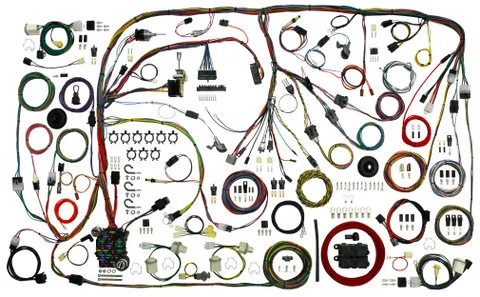

The American Autowire 1980-86 Ford Truck & Bronco Update Kit (AAW510724) is a comprehensive wiring solution designed to completely replace the factory electrical system in your classic vehicle. This kit provides a modern, reliable electrical foundation, supporting both stock and aftermarket upgrades for a full bumper-to-bumper rewire.

KEY FEATURES AND BENEFITS:

• Complete Electrical Overhaul: Replaces every circuit from headlights to taillights for a fully updated electrical system.
• Modern Fuse Panel: Updated ATC/ATO-style fuse panel offers better reliability and easier service while fitting into the stock firewall location.
• Support for Aftermarket Accessories: Designed to accommodate EFI, aftermarket gauges, and other custom add-ons with extra circuits for safe operation.
• High-Quality, Labeled Wiring: Uses GXL wire labeled every 3-5 inches, simplifying installation and troubleshooting.
• Built-in Safety and Performance: Includes a 175-amp mega fuse and 6-gauge charge cable to support high-output alternators and protect the system from power surges.

SPECIFICATIONS:

• Complete Wiring Harness: All-new wiring for dash, engine, front lights, and rear body.
• ATC Fuse Panel: Updated ATC/ATO-style panel with fuses.
• New Switches and Components: Headlight switch with 26-amp circuit breaker, floor dimmer switch, windshield wiper switch, terminals, connectors, and lamp sockets.
• Charge Cable: 175-amp mega fuse kit with 6-gauge charge cable.
• Steering Column Adapter: Adapter kit for stock or aftermarket columns.
• Documentation: Comprehensive, full-color installation instructions and wiring schematics.

HOW TO USE:

• Preparation: Disconnect the battery and remove the old wiring harness.
• Fuse Panel Installation: Mount the new ATC fuse panel in the stock firewall location using the original mounting points and one new screw hole if needed.
• Dash Harness: Install the pre-built dash harness and connect the gauge cluster using the cluster harness disconnect system.
• Front Harness: Route and connect the engine and front light harness. Extra-long leads allow for custom routing for various engine and transmission combinations.
• Rear Harness: Route the rear body wiring along the chassis to the taillights, fuel tank, and other rear accessories.
• Component Connection: Connect all switches and accessories using the included connectors and terminals for a secure fit.
• Final Checks: Verify all connections using the provided schematics before reconnecting the battery. Test all electrical functions.

BENEFITS OF USING AMERICAN AUTOWIRE 1980-86 FORD TRUCK & BRONCO UPDATE KIT (AAW510724):

• Improved Reliability: Replaces old, brittle wiring with a new, high-quality system.
• Enhanced Safety: Modern fuse panel and high-amp circuit protection safeguard your electrical components.
• Simplified Installation: Pre-built harnesses and labeled wiring reduce installation complexity.
• Future-Proofing: Extra circuits and modern capacity support future modifications and accessories.

FEATURES:

• GXL wire throughout for superior heat and abrasion resistance.
• Pre-built dash harness with unique gauge cluster disconnect system.
• Engine and front light harness with extra-long leads for flexible routing.
• Six-way power accessory plug for aftermarket items.
• Rear body wiring with extra-long leads for custom routing.
• New headlight switch with 26-amp internal circuit breaker.
• New floor dimmer switch included.
• Steering column adapter kit for stock or aftermarket columns.
• New original-replacement terminals, connectors, and lamp sockets.
• Includes new windshield wiper switch.
