American Autowire 1957-60 Ford Truck Classic Update Kit (AAW510651)

Description

The American Autowire 1957-60 Ford Truck Classic Update Kit (AAW510651) is a comprehensive wiring solution for 1957-1960 Ford F-Series truck projects. This kit replaces the entire original chassis harness, providing a reliable, modern electrical foundation capable of supporting aftermarket modifications. It accommodates modern gauges, electronic fuel injection (EFI), high-output charging systems, and air conditioning. All harnesses use high-quality GXL wire, and each wire is labeled every 3 to 5 inches, simplifying installation and future troubleshooting.

KEY FEATURES AND BENEFITS:

• Complete Vehicle Solution: Provides all harnesses needed to rewire a vehicle from headlight to taillight, ensuring updated and safe electrical systems.
• Modern Fuse Panel: Updated ATC fuse panel with blade-style fuses offers a reliable, easy-to-service power distribution point enclosed in a labeled box for protection and identification.
• Accommodation for Modern Upgrades: Designed to handle circuits for EFI, high-output alternators, aftermarket gauges, and engine swaps.
• Easy Installation: Pre-built harnesses and a gauge cluster disconnect system make the dash plug-and-play. Labeled wires and detailed instructions streamline the process.
• Enhanced Reliability: Replacing old, brittle wiring with a new harness eliminates common electrical failures and ensures a dependable system.

SPECIFICATIONS:

• Part Number: AAW510651
• Vehicle Compatibility: 1957-1960 Ford F-Series Trucks (F-100, F-250, F-350, and panel trucks)

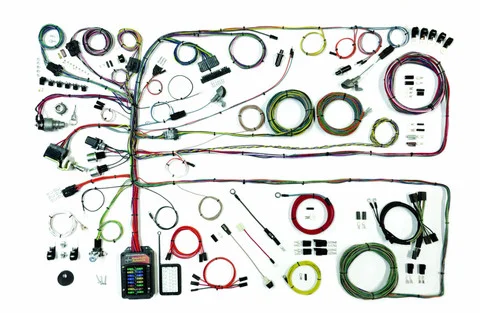

• Included Components:
• Pre-built dash harness
• Engine and front light harness
• Rear body harness
• ATC fuse panel
• Headlight switch with circuit breaker
• Floor dimmer switch
• Ignition switch with keys
• Steering column adapter kit
• 175 amp mega fuse kit with 6-gauge charge cable
• Original-replacement connectors, terminals, and lamp sockets
• Full-color schematics and installation instructions

HOW TO USE:

• Preparation: Disconnect the battery and carefully remove the old wiring harness, noting all major connections.
• Fuse Panel Installation: Mount the ATC fuse panel in the original dash location and secure according to instructions.
• Harness Routing: Route the main dash harness through the firewall, then connect the engine, front light, and rear body harnesses as indicated in the schematics.
• Component Connections: Connect wires to components like the headlight switch, ignition switch, gauges, lights, and engine sensors using the labeled wires for easy identification.
• Final Checks: Double-check all connections against the diagrams, reconnect the battery, and test all electrical systems to ensure proper functionality before driving.

BENEFITS OF USING THE AMERICAN AUTOWIRE 1957-60 FORD TRUCK CLASSIC UPDATE KIT (AAW510651):

• Complete Modernization: Updates the truck’s electrical system to support modern technology and accessories.
• Increased Safety: Modern wiring and fuses reduce the risk of shorts, overheating, and fire.
• Customization-Ready: Extra-long leads and dedicated circuits accommodate a variety of modifications without splicing.
• Professional Appearance: High-quality components provide a clean and organized look for your truck project.

FEATURES:

• Updated ATC fuse panel with labeled lid
• Pre-built dash harness with gauge cluster disconnect
• Extra-long leads on engine and front light harness for custom routing
• Six-way power accessory plug for add-on items
• Rear body wiring with extended leads for various routing options
• 175 amp mega fuse kit with 6-gauge charge cable for high-output charging
• Replacement headlight switch with 26-amp circuit breaker
• New floor-mounted dimmer switch
• Replacement ignition switch compatible with HEI and EFI systems
• Steering column adapter kit for stock or aftermarket columns
• Original-replacement connectors, terminals, and lamp sockets included
