Description

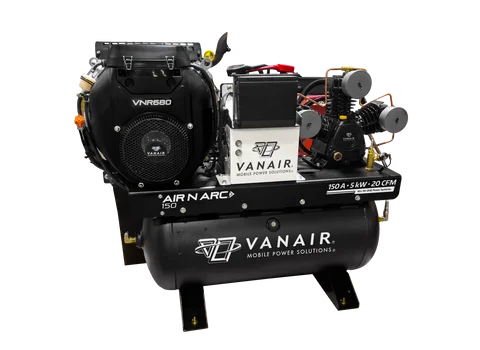

The Air N Arc 050680 150 Air Compressor is designed for high-performance applications. With a robust 19 HP engine, this air compressor delivers an impressive 20 CFM airflow, making it suitable for both commercial and home use. Its 30-gallon tank provides ample capacity for extended operation, allowing users to tackle demanding tasks without interruption. This all-in-one power system is ideal for powering tools, inflating tires, or operating pneumatic equipment. Built for durability and efficiency, this compressor is an essential addition to any workshop or job site.
Air Compressor | Generator | Welder | Optional Battery Charger & Battery Booster
Four Forms of Power for Light to Medium Industrial Repair
The Air N ARC® 150 provides you with four forms of power in one compact and economic unit, allowing you to save space and weight on your vehicle. Providing up to 190 AMPs of welding power, the Air N Arc® 150 is available in three configurations to meet your mounting needs.
- Fuel System can be Integrated with the Chassis
- Powder Coated Sheet Metal for Protection
- 100% Duty High Frequency Welder Offering Excellent Weld Characteristics
- Galvannealed Steel Metal
- Heavy Duty Belt Driven System for Anti-Vibration and Long Service Intervals
AIR COMPRESSOR
- Reciprocating Compressor
- Cast Iron Air Pump with Three Cylinder Head Design for Better Cooling
WELDER
- Patented Amperage and Power Controls Built Into Welding Lead for Ease of Use for 14 HP Units and 19 HP Stand Alone Machines
- 100% Variable Completely Controllable. No Preset Settings.
- Independent Welding Generator
- CV on Remote Panel Machines
- Safe Multi-Function
- Auto Throttle Control
GENERATOR
- True Two Generator System for Safe Multi-Functioning of Welder and Electric Tools
- Independent AC Power for Safe Multi-Functioning
- Brushless Design
- Smooth Wave for Minimal Distortion
- Two 120V Outlets and One 240V Outlet Provided
ENGINE
- 14 HP Kohler® or 19 HP Kohler®
- Electric start
AVAILABLE FUEL CAPACITY
- 1.9 Gallons (14 HP)
- 4.5 Gallons on Models with 8 Gallon Air Storage (19 HP)
- 11.5 Gallons on Models with 30 Gallon Air Storage (19 HP)
- Plumb to Chassis
BATTERY BOOST/CHARGE (OPTIONAL)
- 150 AMP 12/24V boost (standard on remote panel)
- 50 AMP 12V charge (standard on remote panel)
REMOTE CONTROL PANEL (OPTIONAL ON KOHLER 19 HP SYSTEMS) (HARNESS NOT INCLUDED)
- Provides Ultimate User Convenience and Safety
- All Functions Accessible at Panel. No Need to Jump In and Out of Vehicle.
- Filter/Lubricator/Regulator (FLR)
- Hose Reels and Fittings
- OSHA Safety Valve (Velocity Fuse)
- Post Drivers
- Service/Control Line Moisture Separators
- Tool Oiler/Lubricator
Available Air Reservoirs (See Options)
- 8 Gal. (19 HP)
- 10 Gal. (14 HP)
- 30 Gal.
- Skid mount
Kohler 14 HP
- Platform dimensions for 10 Gallon with fittings (In.) – 51.5L x 21.0W x 31.2H*
- Platform dimensions for 30 Gallon with fittings (In.) – 50.7L x 19.2W x 40.8H*
- Platform dimensions for Skid Mount with fittings (In.) – 50.3L x 18.2W x 24.2H*
- Dry weight (Lbs.) – 345-565 depending on platform
